CRD500 3 Jaw Tubing Expander

MWcms on February 22, 2024

3-jaw tubing expanders
CRD500SS <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div>
CRD510 <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div>

Call or email with questions.

Call or Email with Questions

The 3-Jaw Expander allows larger barbed fittings to be installed in silicone or latex tubing, with the inserted fitting being scooped off of the jaws in one easy motion. Option to upgrade to stainless steel.

Download

CD005 D L S <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="442"]
3-Jaw Expander Straight Jaws

P/N: CD005-D(iameter)-L(ength)-S(traight)
Quality machined, medical grade stainless steel 3-piece jaw set. Before ordering, please send samples so that we can determine the best size for your application. Please be aware that the CD005 jaws are not compatible with the CRD520.
CD005 D L T <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="442"]
3-Jaw Expander Tapered Jaws

P/N: CD005-D(iameter)-L(ength)-T(apered)
Quality machined, medical grade stainless steel 3-piece jaw set. Before ordering, please send samples so that we can determine the best size for your application. Please be aware that the CD005 jaws are not compatible with the CRD520.
CD005 D L S <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="442"]
4-Jaw Expander Straight Jaws

P/N: CD520-D(iameter)-L(ength)-S(traight)
Quality machined, medical grade stainless steel 4-piece jaw set. Before ordering, please send samples so that we can determine the best size for your application. Please be aware that the CD520 jaws are not compatible with the CRD500/500SS/510.

The smallest diameter that is available for the CD520 jaws is 0.250″
CD005 D L T <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="442"]
4-Jaw Expander Tapered Jaws

P/N: CD520-D(iameter)-L(ength)-T(apered)
Quality machined, medical grade stainless steel 4-piece jaw set. Before ordering, please send samples so that we can determine the best size for your application. Please be aware that the CD520 jaws are not compatible with the CRD500/500SS/510.

The smallest diameter that is available for the CD520 jaws is 0.250″
"
Pneumatic Foot Switch

P/N: P00069
The pneumatic foot pedal features a housing and base plate with full non-skid base pad.
FG <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="442"]

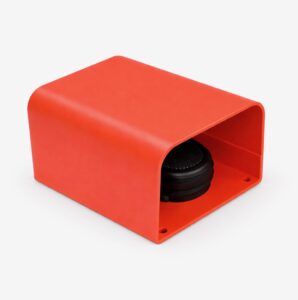

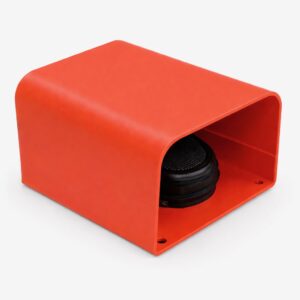

Foot Pedal Guard

P/N: P00600
Foot pedal enclosure to prevent accidental activation.
Anti Tiedown Button <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="442"]
Anti-Tie Down Safety Kit

P/N: ATD
The Anti-Tie Down Safety Kit provides an additional level of operator safety. Once the operator depresses the foot pedal to open the jaws, the system requires both buttons to be depressed at the same time to close the jaws.
SKU: N/A Category:

Description

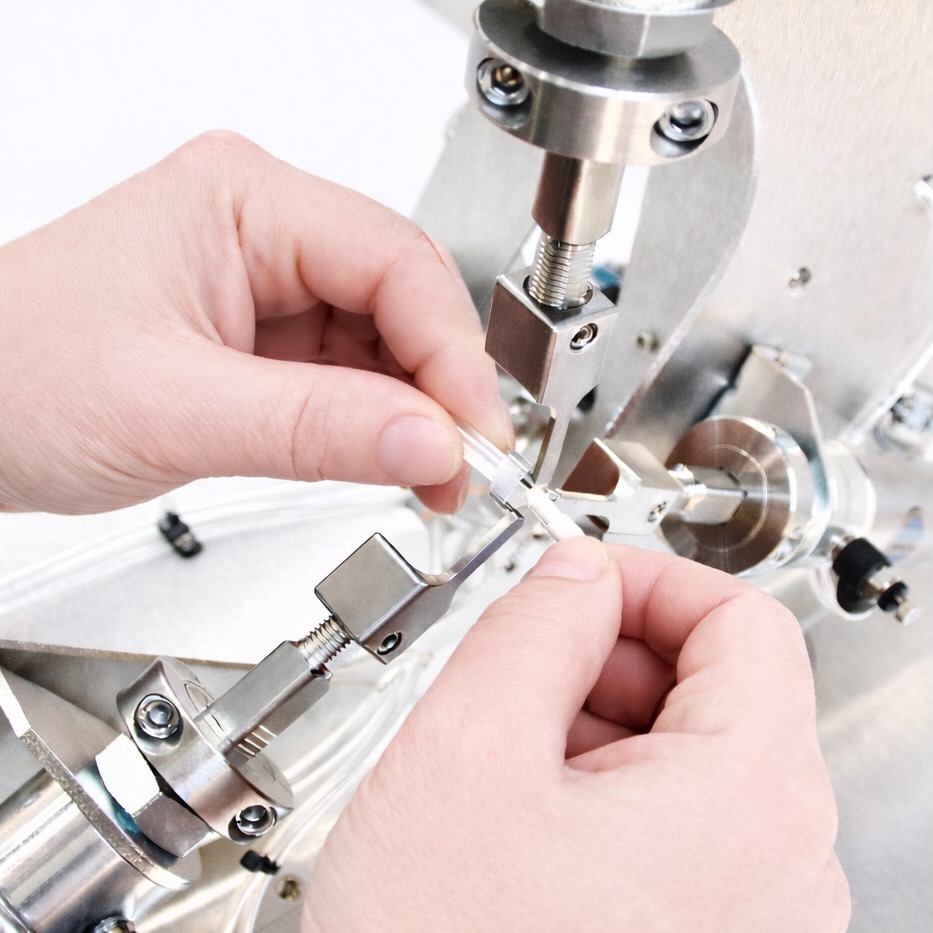

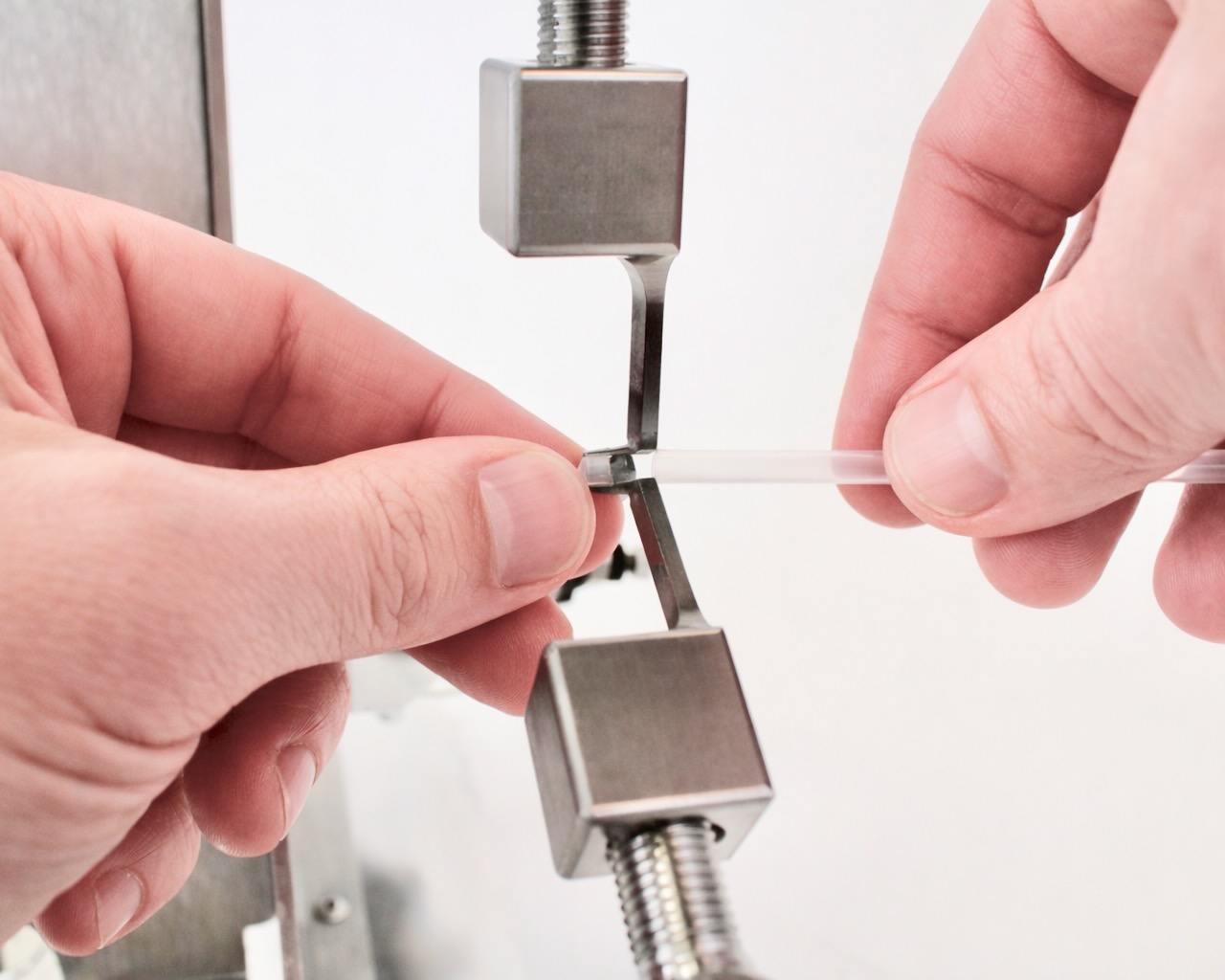

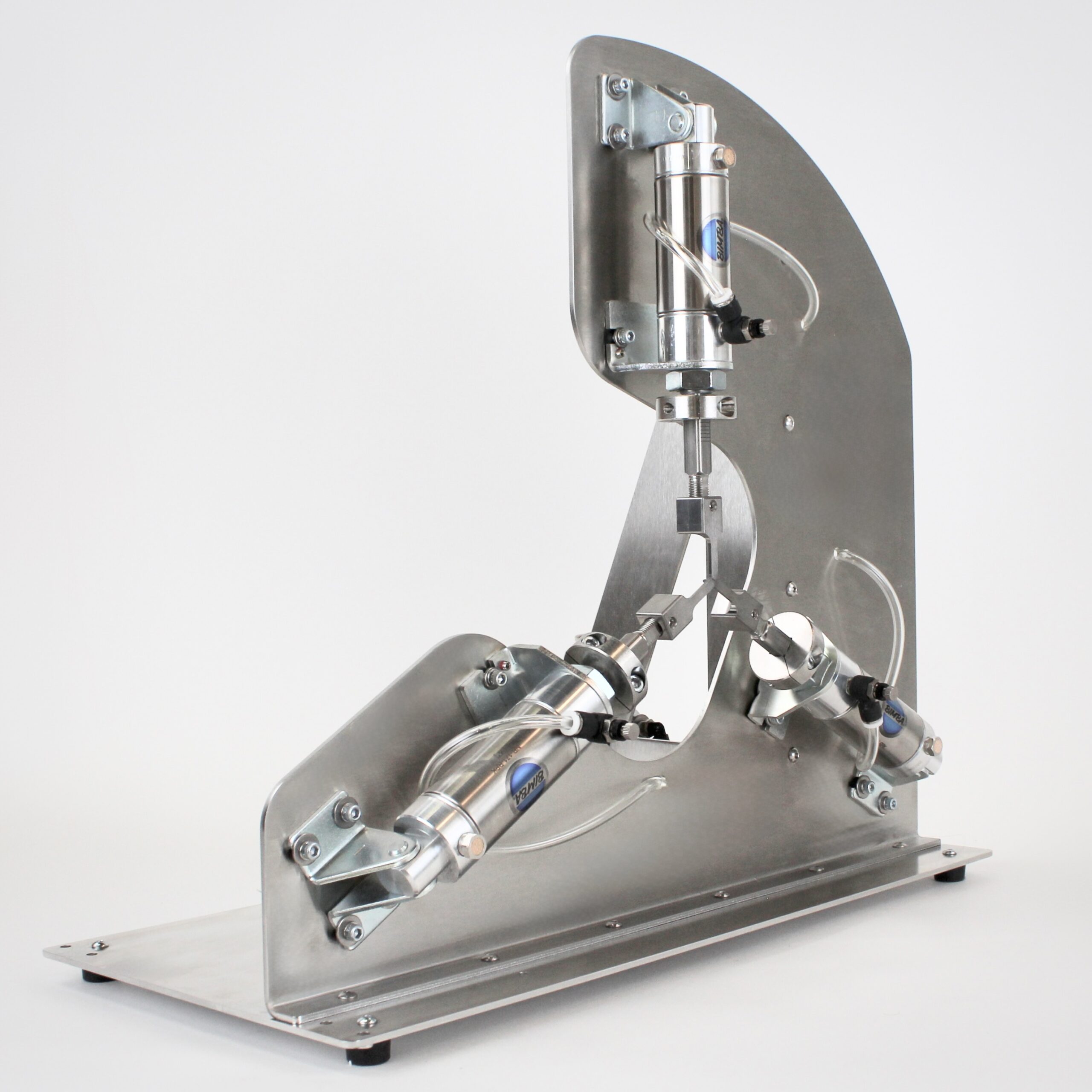

The CRD500 3-Jaw Expander allows larger barbed fittings to be installed in silicone or latex tubing, with the inserted fitting being scooped off of the jaws in one easy motion. A controlled internal expanding operation of the tubing will spread the tubing up to a maximum of 1 1/2” wide. The robust air cylinders that perform the expanding operation are driven by a foot pedal. After expansion, a secure fit is formed as the tubing recovers to its original size. This silicone tubing expander is also an ideal latex tubing expander.

Medical tube expander: Our tube expanders are well suited for medical tube expansion operations.  They feature clean room compatible construction and are able to expanding medical tubing accurately, with highly repeatable results.  All of our tube expanders feature stainless steel jaws to prevent contamination during expansion.  Also, are expanders are extremely easy to validate.  Our expanders are equipped with pressure gauges and accurate jaw gap adjustment mechanisms.  This makes tube expansion very repeatable.

Flexible tube expander:  Our tube expanders are capable of expanding many types of flexible tubing.  Our flexible tubing expanders can be used with either tapered or straight jaws, depending on the type of tubing to be expanded.

Plastic tube expander: Our tube expanders will expand many types of plastic tubing including PVC, urethane and many types of thermoplastics.

Please contact us for pricing and availability (303) 438-0853 or Email our Sales Department

CRD220 CE LOGO 750x383 1 300x153 1 <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div>

Technical Specifications

  • The CRD500 is ideal for inserting barbed fittings into expanded tubing; will expand from 3/32″ to a maximum of 1 1/2” wide.
  • CRD510 – Smaller footprint than the CRD500; 10′′ wide vs. 20.5′′ wide, saving valuable workspace
  • Ergonomic foot pedal operation.
  • Dependable air pressure regulator/gauge and thumbscrew provide simple adjustments.
  • 90 days parts and labor warranty; see user’s manual for warranty details.
  • Specify jaw type and size when ordering.
  • Anti-tie down feature available.

Additional information

Model

CRD500, CRD500SS (Stainless Steel), CRD510SS (Stainless Steel, Smaller Footprint)
