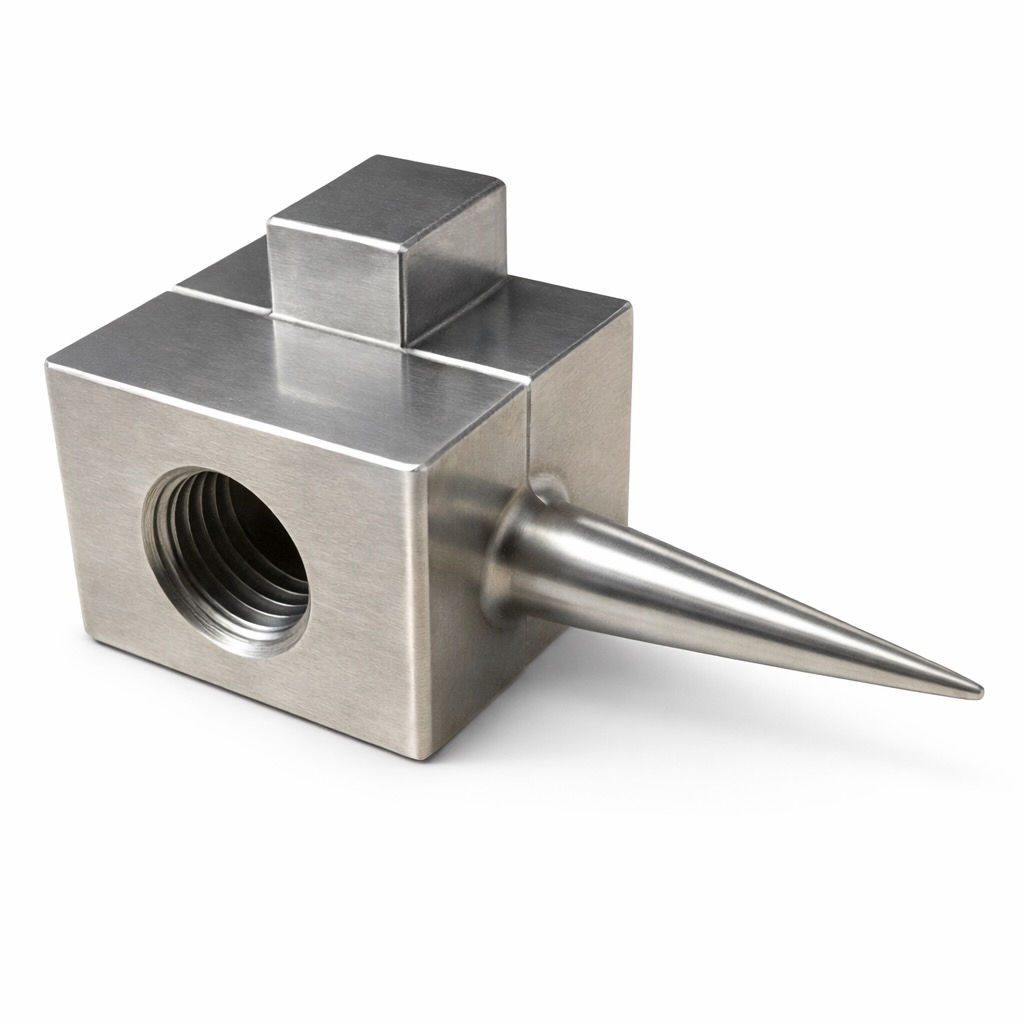

Universal Expander Jaws

Our tubing expander jaw sets are precision machined from high quality 17-4 PH (aka SAE Type 630) medical grade stainless steel for our non-heated tubing expanders. Each set consists of a paired, upper and lower jaw. The universal jaws cover a wide range of industry standard tubing sizes (I. D.). These jaw sets will cover most applications, although we do have custom uniform I. D. straight jaws available. The available sizes are: Extra Large, Large, Small, Extra Small, and Mini.

The dimensions of the jaws are:

JUNIM 0.045″-0.129″ Diameter x 0.395″ Length

JUNIXS 0.045″-0.184″ Diameter x 0.625″ Length

JUNIS 0.069″-0.269″ Diameter x 0.886″ Length

JUNIL 0.190″-0.468″ Diameter x 1.250″ Length

JUNIXL 0.262″-0.541″ Diameter x 1.250″ Length

P/N: JUNIXL-(Xl), JUNIL-(Lg), JUNIS-(Sm), JUNIXS (Xs), JUNIM-(Mini)
