CRD120 Pneumatic Tubing Cutter

MWcms on February 21, 2024

electric tube cutters

Call or email with questions.

Call or Email with Questions

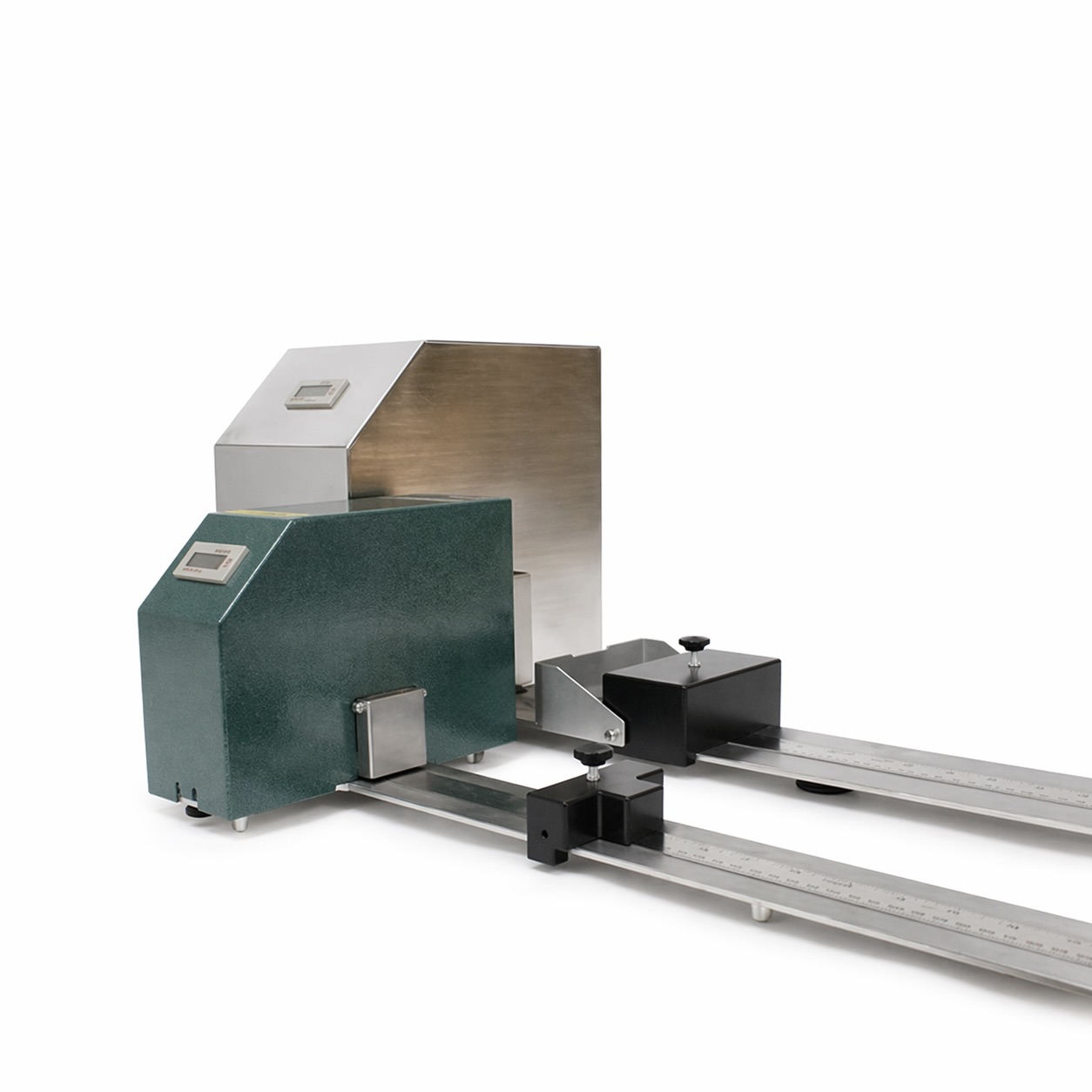

This semi-automatic, electro-pneumatic table-top device is designed for precision and speed in the production environment. The electric foot pedal makes this medical tubing cutter ergonomically friendly and easy to operate. This precision-crafted industrial and clean room product has several thousand hours of proven operational effectiveness.

CRD-170-Manual-v2.1Download

Unwind <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Unwind Stand

P/N: CRD000-103
The Unwind Stand will hold spools of tubing or wire up to 12 inches in diameter. Anodized and powder-coated finish for compatibility in cleanroom environments.
BS100 <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Full Bushing Set

P/N: BS100
Bushing stand. Holds six (6) large bushings.
BSS <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Single Bushing Stand

P/N: BS
Bushing stand.
null
Single Bushings (Chevron Blade)
  • B062: 1/16″(1.5mm)OD
  • B093: 3/32″(2.5mm)OD
  • B125: 1/8″(3mm)OD
  • B156: 5/32″(4mm)OD
  • B187: 3/16″(5mm)OD
  • B218: 7/32″(5.5mm)OD
  • B250: 1/4″(6mm)OD
  • B280: 9/32″(7mm)OD
  • B312: 5/16″(8mm)OD
  • B375: 3/8″(10mm)OD
  • B437: 7/16″(11mm)OD
  • B500: 1/2″(12mm)OD
  • B562: 9/16″(14.5mm)OD

View options »
null
Single Bushing Sets (Razor Blade)
  • SCB062: 1/16″(1.5mm)OD
  • SCB093: 3/32″(2.5mm)OD
  • SCB125: 1/8″(3mm)OD
  • SCB156: 5/32″(4mm)OD
  • SCB187: 3/16″(5mm)OD
  • SCB218: 7/32″(5.5mm)OD
  • SCB250: 1/4″(6mm)OD
  • SCB280: 9/32″(7mm)OD
  • SCB312: 5/16″(8mm)OD
  • SCB375: 3/8″(10mm)OD
  • SCB437: 7/16″(11mm)OD
  • SCB500: 1/2″(12mm)OD

View options »
P00069 <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Pneumatic Foot Pedal

P/N: P00069
The pneumatic foot pedal features a housing and base plate with full nonskid base pad.
RB100 <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Short Cut Razor Blades

P/N: RB100 (Pack of 10)
Stainless Steel razor blades used in conjunction with short cut bushing sets. Available in three (3) thicknesses: 0.012″, 0.008″, and 0.006″ for different applications.
stoppin 1 <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Precision Stop for Short Cut

P/N: ASP
Adjustable stop pin, used for all cut lengths shorter than .925″.
CD120 021 1 <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Slide Block With Rotating Stop Arm

P/N: CD120-021
Rotating stop arm allows for accurate cutting of 1″ to 2-1/2″ lengths.
RSB <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Slide Block With Rotating Stop Arm, For Cutters Without the Foot Pedal

P/N: CD100-041R
Rotating stop arm allows for accurate cutting of 1″ to 2-1/2″ lengths.
CB100 <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Chevron Blade

P/N: CB100
Durable, Angled Cutting Blades, Hardened Stainless Steel. 0.040″ Thickness.
P00159 <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Electric Foot Switch

P/N: P00159
Cast housing. Nonskid base pad. Complete with adjustable strain relief connector. Black finish.An internal strain relief clamp is provided that accepts a wide range of cable sizes.
FG <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Foot Pedal Guard

P/N: P00600
Foot pedal enclosure to prevent accidental activation.
stoppin <div class="callemail nomobile"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">email</a> with questions.</strong></h3> </div> <div class="callemail nodesktop"> <h3><strong><a href="tel:3034380853">Call</a> or <a href="mailto:sales@cleanroomdevices.com">Email</a> with Questions </strong></h3> </div> <div class="wp-block-buttons"> <!-- /wp:button --> </div> [wptabs id="275"]
Large Adjustable Stop Pin

P/N: LASP
Adjustable stop pin, used for all cut lengths shorter than 1.625″.
SKU: N/A Category:

Description

This semi-automatic, pneumatic table-top device is designed for precision and speed in the production environment. The foot pedal makes this plastic tubing cutter ergonomically friendly and easy to operate. This precision-crafted industrial and clean room product has several thousand hours of proven operational effectiveness. This unit is more economical compared to the CRD100. The cutter comes with an accurate scale with inch and millimeter graduations and may be ordered with an optional certified scale.

Medical tube cutter: Our tube cutters are well suited for medical tube cutting applications.  They feature clean room compatible construction, are able to hold close tolerances on cut lengths and have both metric and imperial scales mounted to their bases.  These cutters employ stainless steel blades to cut medical tubing without contamination.

Flexible tube cutter: Our tube cutters are capable of cutting many types of flexible tubing.  This includes pre-cut straight tubing as well as tubing off of a spool.

Plastic tube cutter: Our tube cutters will cut many types of plastic tubing including PVC, urethane and many types of thermoplastics.

An optional stainless steel electronics cover is available.

Please contact us for pricing and availability (303) 438-0853 or Email our Sales Department

Technical Specifications

  • The CRD120 will cut most flexible tubing, non-metallic braided tubing and heat shrink from sizes of 1/16″ (1.5mm) through 1/2″ (12.5mm).
  • A recommended durometer of Shore A 100, or less, will be cut very effectively without “burring”, tube deformation or excessive unit wear.
  • Easily interchangeable bushings; sizes range from 1/16” to 1/2”.
  • Minimum/maximum cut lengths range from 29/32″ to 24″.
  • Cut lengths down to 1/16″ can be obtained with adjustable stop pin (optional).
  • This cutter uses a stainless steel chevron blade.
  • Requires 100-120 PSI air supply
  • An optional stainless steel electronics cover is available.
  • 90 days parts and labor warranty; see user’s manual for warranty details.

Additional information

Weight 123 lbs
Model

CRD120, CRD120SS
