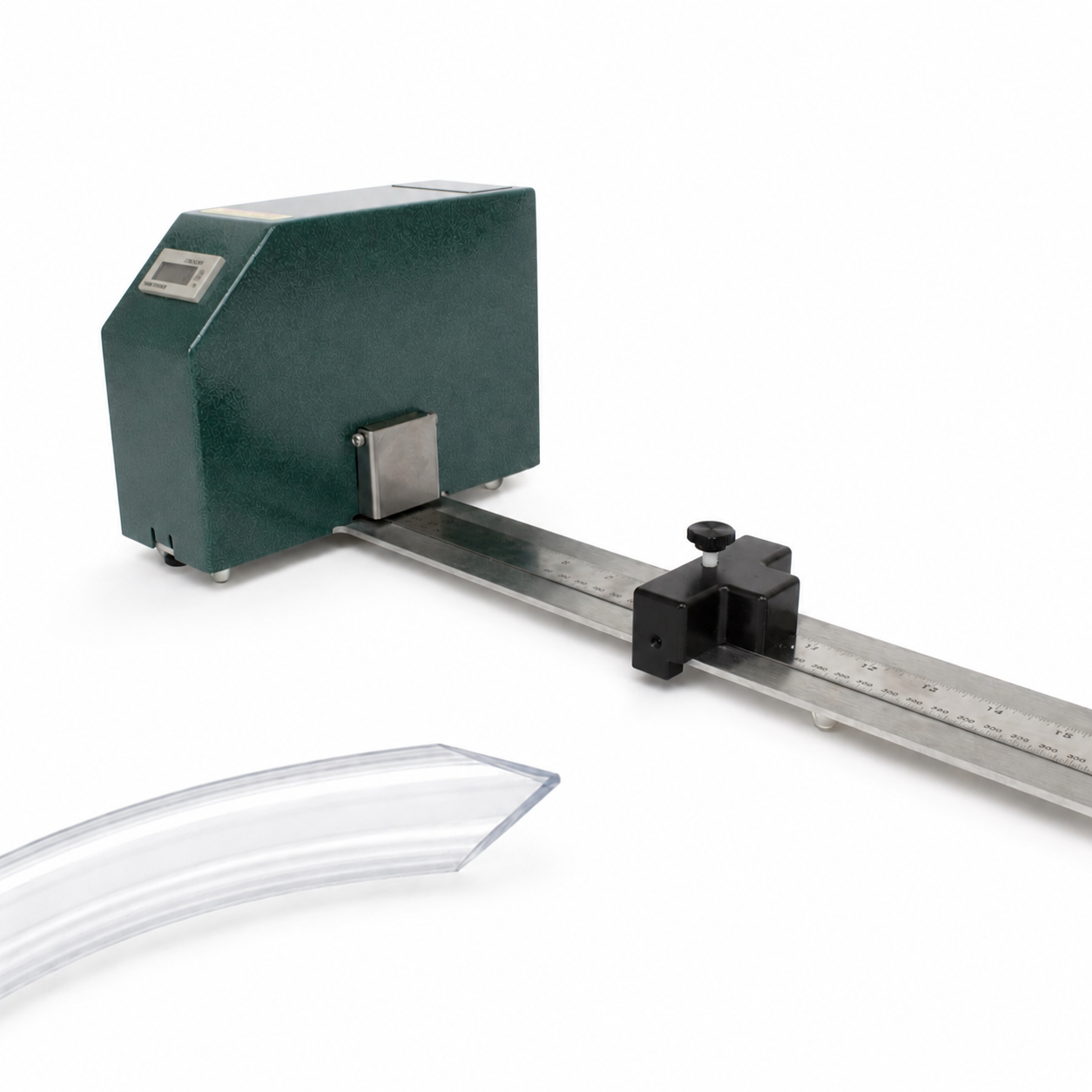

CRD190 60° V-Notch Tubing Cutter

MWcms on February 21, 2024

Call or email with questions.

Call or Email with Questions

This semi-automatic, electro-pneumatic table-top device is designed for precision and speed in the production environment. This cutter is designed to cut a 60° v-notch on tubing (see demonstration video below). The electric foot pedal makes this medical tubing cutter ergonomically friendly and easy to operate.

CRD-170-Manual-v2.1Download

Unwind Stand

P/N: CRD000-103
The Unwind Stand will hold spools of tubing or wire up to 12 inches in diameter. Anodized and powder-coated finish for compatibility in cleanroom environments.
null
Single Bushings
  • BB062: 1/16″(1.5mm)OD
  • BB093: 3/32″(2.5mm)OD
  • BB125: 1/8″(3mm)OD
  • BB156: 5/32″(4mm)OD
  • BB187: 3/16″(5mm)OD
  • BB218: 7/32″(5.5mm)OD
  • BB250: 1/4″(6mm)OD
Slide Block with Rotating Stop Arm

P/N: CD185-027
Rotating stop arm allows for accurate cutting of 1.625″ to 3″ lengths.
Slide Block With Rotating Stop Arm, For Cutters Without the Foot Pedal

P/N: CD120-021
Rotating stop arm allows for accurate cutting of 1.625″ to 3″ lengths.
Electric Foot Switch

P/N: P00159
Cast housing. Nonskid base pad. Complete with adjustable strain relief connector. Black finish.An internal strain relief clamp is provided that accepts a wide range of cable sizes.
Single Bushing Stand (Large Bushing)

P/N: P00600
Foot pedal enclosure to prevent accidental activation.
Large Adjustable Stop Pin

P/N: LASP
Adjustable stop pin, used for all cut lengths shorter than 1.625″.
Power Supply

P/N: NAPS24
Class 2 AC to DC Transformer, 2.1mm ID x 5.5mm OD, input= 120VAC-230VAC 60 Hz 20W, output= 24VDC 1000mA, 6′ cord, 2 prong plug, UL Listed.
European Power Supply

P/N: EUPS24
Class 2 AC to DC Transformer, 2.1mm ID x 5.5mm OD, input= 90 VAC ~ 264 VAC 30W, output= 24VDC 1250mA, 5’ cord, 5 plug types.
Category:

Description

This semi-automatic, electro-pneumatic table-top device is designed for precision and speed in the production environment. This cutter is designed to cut a 60° v-notch on tubing (see demonstration video below). The electric foot pedal makes this medical tubing cutter ergonomically friendly and easy to operate. This precision-crafted industrial and clean room product has several thousand hours of proven operational effectiveness. The cutter comes with an accurate scale with inch and millimeter graduations and may be ordered with an optional certified scale.

Medical tube cutter: Our tube cutters are well suited for medical tube cutting applications. They feature clean room compatible construction, are able to hold close tolerances on cut lengths and have both metric and imperial scales mounted to their bases. These cutters employ stainless steel blades to cut medical tubing without contamination.

Flexible tube cutter: Our tube cutters are capable of cutting many types of flexible tubing. This includes pre-cut straight tubing as well as tubing off of a spool.

Plastic tube cutter: Our tube cutters will cut many types of plastic tubing including PVC, urethane and many types of thermoplastics.

An optional stainless steel electronics cover is available.

This cutter is available in 3 additional lengths:
CRD193 cuts up to 36″ lengths
CRD194 cuts up to 48″ lengths
CRD195 cuts up to 60″ lengths

Technical Specifications

  • The CRD190 will cut a 60° V-Notch into most flexible tubing, non-metallic braided tubing and heat-shrink from sizes of 1/16″ (1.6mm) through 1/4″ (6.35 mm).
  • A recommended durometer of Shore A 100, or less, will be cut very effectively without “burring”, tube deformation or excessive unit wear.
  • Easily interchangeable bushings; sizes range from 1/16″ to 1/4″.
  • Minimum/maximum cut lengths range from 1/2″ to 60″.
  • Requires 100-120 PSI air supply.
  • 90 days parts and labor warranty; see user’s manual for warranty details
