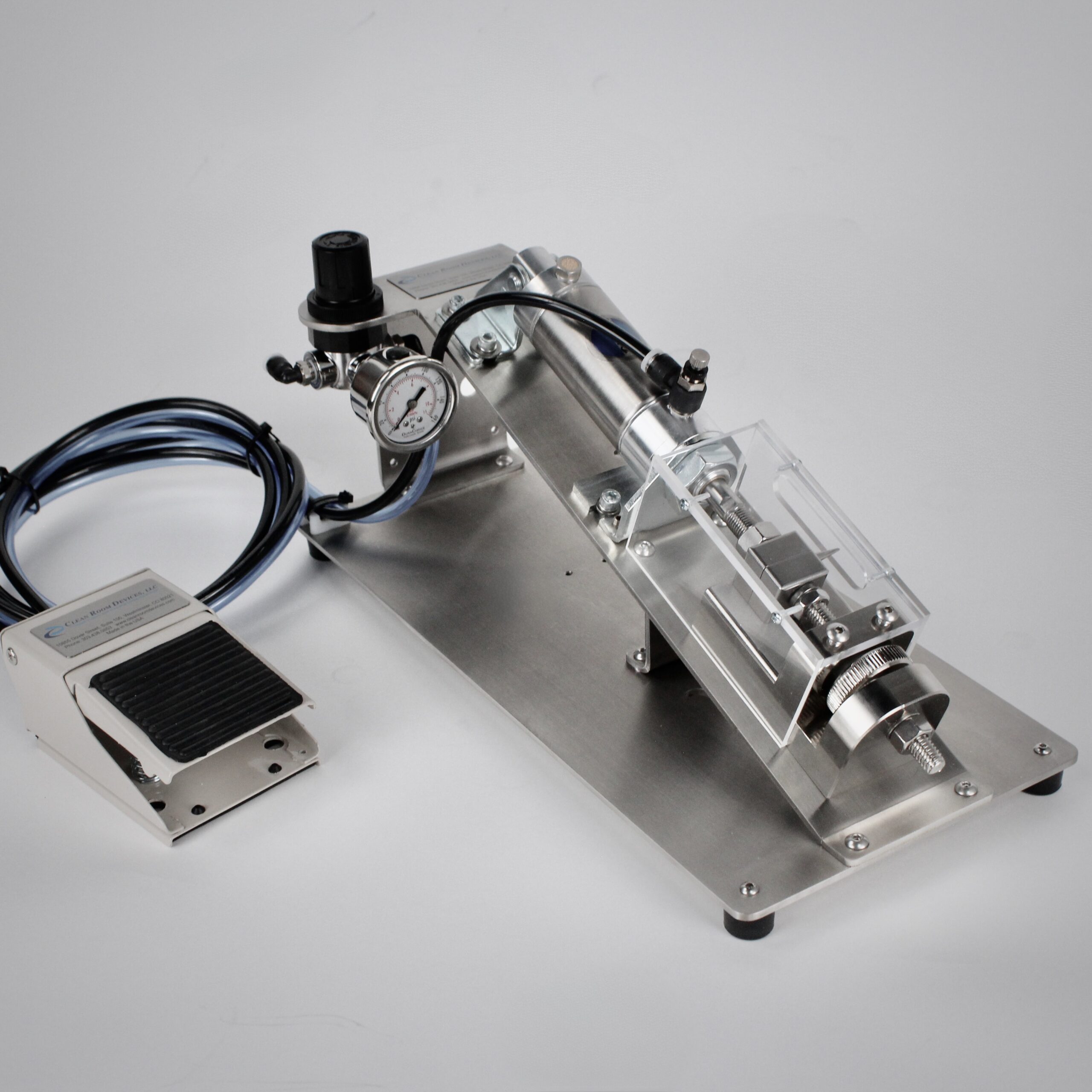

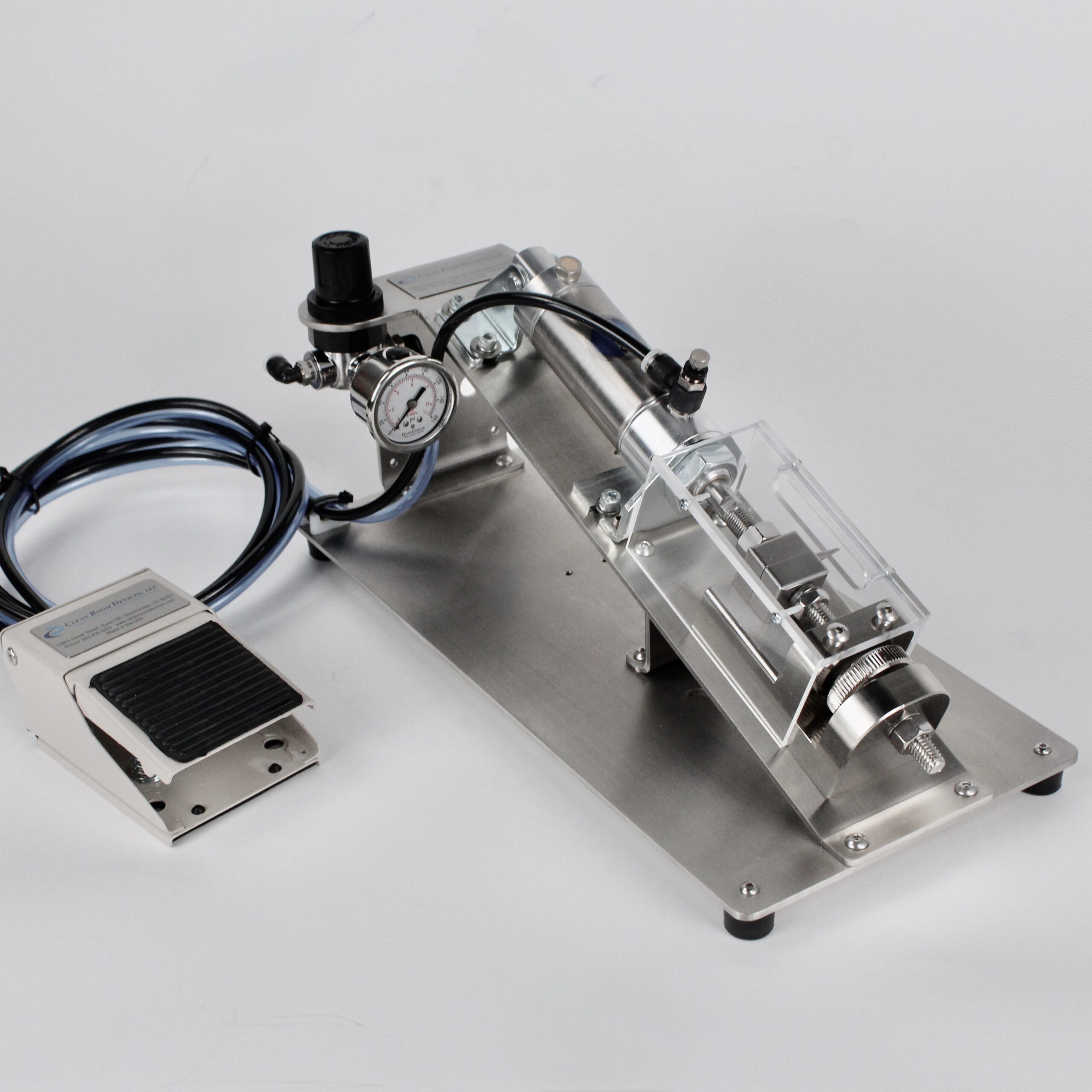

CRD200SS Tubing Expander With Stainless Steel Base



The CRD200SS tubing expander performs a controlled internal expanding operation in the end of most plastic and rubber tubing material. The foot pedal and robust air cylinder perform an expanding operation, increasing the size of the tubing, and allowing ease of the fitting insertion, as well as securing the fit as the specialty tubing recovers to its original size. The CRD200SS flexible tubing spreader features a full stainless steel base.

CE Certified: The CRD201 is now available as a CE certified model. Please contact us for details at (303) 438-0853 or Email our Sales Department

Medical tube expander: Our tube expanders are well suited for medical tube expansion operations.  They feature clean room compatible construction and are able to expand medical tubing accurately, with highly repeatable results.  All of our tube expanders feature stainless steel jaws to prevent contamination during expansion.  Also, our expanders are extremely easy to validate.  They are equipped with pressure gauges and accurate jaw gap adjustment mechanisms.  This makes tube expansion very repeatable.

Flexible tube expander:  Our tube expanders are capable of expanding many types of flexible tubing.  Our flexible tubing expanders can be used with either tapered or straight jaws, depending on the type of tubing to be expanded.

Plastic tube expander: Our tube expanders will expand many types of plastic tubing including PVC, urethane and many types of thermoplastics.

Please contact us for pricing and availability (303) 438-0853 or Email our Sales Department

Technical Specifications

  • The CRD200SS will expand most flexible tubing material (including non-metallic braided tubing) from .040″ to 1/2″ inside diameter (I.D.).

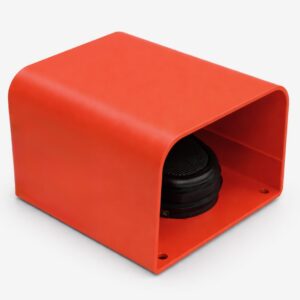

  • Ergonomic foot pedal operation
  • Dependable air pressure regulator/gauge and lock nut provide simple adjustments
  • 90 days parts and labor warranty; see user’s manual for warranty details.
  • Specify jaw type and size when ordering.


Please contact us at (303) 438-0853 or Email our Sales Department

More Information

View Demonstration
2 Sided Jaw Demonstration
Go to Accessories
CRD223 Accessories
