CRD220 Heavy-Duty Tubing Expander

Call or email with questions.

Call or Email with Questions

The CRD200SS tubing expander performs a controlled internal expanding operation in the end of most plastic and rubber tubing material.

CRD220 Heavy-Duty Tubing Expander
Universal Expander Jaws

P/N: JUNIL-(Lg), JUNIS-(Sm), Intermediate, JUNIM-(Mini)
Quality machined, medical grade stainless steel jaws (upper & lower). The universal jaws cover a wide range of industry standard tubing sizes (O. D.). These jaw sets will cover most applications, although we do have custom uniform O. D. straight jaws available. The available sizes are: Large, Small, and Mini.

CRD220 Heavy-Duty Tubing Expander
Custom Straight Jaws

P/N: CSJS### (3 digit size)
Our custom straight jaws are made to fit the ID of the tubing closer than our tapered jaws. If you are expanding tubing such as C-FLEX or EVA, our straight jaws will give a more accurate expansion.

CRD220 Heavy-Duty Tubing Expander
Double Sided Jaws

Double Sided Jaws
P/N: CDSJ### (3 digit size)
Quality machined, medical grade stainless steel jaws (upper & lower). The universal jaws cover a wide range of industry standard tubing sizes (I. D.). These jaw sets will cover most applications, although we do have custom uniform I. D. straight jaws available.

CRD220 Heavy-Duty Tubing Expander
Pneumatic Foot Pedal

P/N: P00069
The pneumatic foot pedal features a housing and base plate with full non-skid base pad.

CRD220 Heavy-Duty Tubing Expander
Foot Pedal Guard

P/N: P00600
Foot pedal enclosure to prevent accidental activation.

Category:

Description

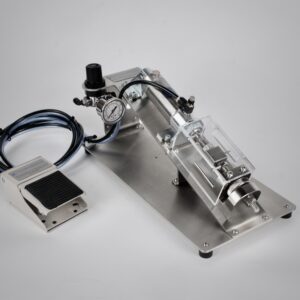

The CRD220 tubing expander performs a controlled internal expanding operation in the end of most plastic and rubber tubing material. This unit features a larger air cylinder than the CRD200, giving the CRD220 the ability to expand larger diameter tubing. The foot pedal and robust air cylinder perform an expanding operation, increasing the size of the tubing, and allowing ease of the fitting insertion, as well as securing the fit as the specialty tubing recovers to its original size. The CRD220 medical tubing expander features full stainless steel base.

CE Certified: The CRD220 is now available as a CE certified model. Please contact us for details at (303) 438-0853 or Email our Sales Department

Medical tube expander: Our tube expanders are well suited for medical tube expansion operations.  They feature clean room compatible construction and are able to expand medical tubing accurately, with highly repeatable results.  All of our tube expanders feature stainless steel jaws to prevent contamination during expansion.  Also, our expanders are extremely easy to validate.  They are equipped with pressure gauges, accurate jaw gap adjustment mechanisms and time delay relays to set expansion time.  This makes tube expansion very repeatable.

Flexible tube expander:  Our tube expanders are capable of expanding many types of flexible tubing.  Our flexible tubing expanders can be used with either tapered or straight jaws, depending on the type of tubing to be expanded.

Plastic tube expander: Our tube expanders will expand many types of plastic tubing including PVC, urethane and many types of thermoplastics.

Please contact us for pricing and availability (303) 438-0853 or Email our Sales Department

CRD220 Heavy-Duty Tubing Expander

Technical Specifications

  • The CRD220 will expand most flexible tubing material (including non-metallic braided tubing) from 1/4″ to 3/4″ inside diameter (I.D.).
  • Ergonomic foot pedal operation.
  • Dependable air pressure regulator and gauge with 100% pneumatic operation.
  • Locking collars ensure repeatable expansions.
  • Specify jaw type and size when ordering.
  • 90 days parts and labor warranty; see user’s manual for warranty details.
