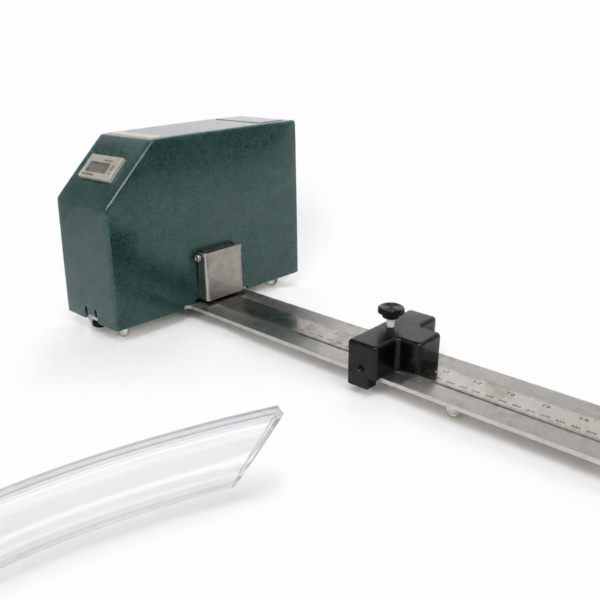

CRD170 Multi-Angle Tubing Cutter

Call or email with questions.

Call or Email with Questions

This semi-automatic, electro-pneumatic table-top device is designed for precision and speed in the production environment.

Unwind Stand

P/N: CRD000-103
The Unwind Stand will hold spools of tubing or wire up to 12 inches in diameter. Anodized and powder-coated finish for compatibility in cleanroom environments.

Full Bushing Set

P/N: BS100
Bushing stand. Holds six (6) large bushings.

Single Bushing Stand

P/N: BS
Bushing stand.

null
Single Angled Bushings

P/N: ABS
Please Specify Angle When Ordering (15°, 30°, 45°, 60°, 75°, 90°)

  • AB062: 1/16″(1.5mm)OD
  • AB093: 3/32″(2.5mm)OD
  • AB125: 1/8″(3mm)OD
  • AB156: 5/32″(4mm)OD
  • AB187: 3/16″(5mm)OD
  • AB218: 7/32″(5.5mm)OD
  • AB250: 1/4″(6mm)OD
  • AB280: 9/32″(7mm)OD
  • AB312: 5/16″(8mm)OD
  • AB375: 3/8″(10mm)OD
  • AB437: 7/16″(11mm)OD
  • AB500: 1/2″(12mm)OD

View options »

Short Cut Razor Blades

P/N: RB100 (Pack of 10)
Stainless Steel razor blades used in conjunction with short cut bushing sets. Available in three (3) thicknesses: 0.012″, 0.008″, and 0.006″ for different applications.

Slide Block With Rotating Stop Arm

P/N: CD100-041R
Rotating stop arm allows for accurate cutting of 1″ to 2-1/2″ lengths.

Slide Block With Rotating Stop Arm, For Cutters Without the Foot Pedal

P/N: CD100-041R
Rotating stop arm allows for accurate cutting of 1″ to 2-1/2″ lengths.

Electric Foot Switch

P/N: P00159
Cast housing. Nonskid base pad. Complete with adjustable strain relief connector. Black finish.An internal strain relief clamp is provided that accepts a wide range of cable sizes.

Foot Pedal Guard

P/N: P00600
Foot pedal enclosure to prevent accidental activation.

Power Supply

P/N: NAPS24
Class 2 AC to DC Transformer, 2.1mm ID x 5.5mm OD, input= 120VAC-230VAC 60 Hz 20W, output= 24VDC 1000mA, 6′ cord, 2 prong plug, UL Listed.

European Power Supply

P/N: EUPS24
Class 2 AC to DC Transformer, 2.1mm ID x 5.5mm OD, input= 90 VAC ~ 264 VAC 30W, output= 24VDC 1250mA, 5’ cord, 5 plug types.

Description

Cuts up to 24″ length | Cuts tubing sizes from 1/16″ to 1/2″ OD

This semi-automatic, electro-pneumatic table-top device is designed for precision and speed in the production environment. This cutter is capable of cutting 15°, 30°, 45°, 60°, 75°, and 90° angles. The electric foot pedal makes this plastic tubing cutter ergonomically friendly and easy to operate. This precision-crafted industrial and clean room product has several thousand hours of proven operational effectiveness. The cutter comes with an accurate scale with inch and millimeter graduations and may be ordered with an optional certified scale (24″, 36″, and 48″ lengths only).

  • Medical tube cutter: Our tube cutters are well suited for medical tube cutting applications.  They feature clean room compatible construction, are able to hold close tolerances on cut lengths and have both metric and imperial scales mounted to their bases.  These cutters employ stainless steel blades to cut medical tubing without contamination.
  • Flexible tube cutter: Our tube cutters are capable of cutting many types of flexible tubing.  This includes pre-cut straight tubing as well as tubing off of a spool.
  • Plastic tube cutter: Our tube cutters will cut many types of plastic tubing including PVC, urethane and many types of thermoplastics.

An optional stainless steel electronics cover is available.
This cutter is available in 3 additional lengths:
CRD173 cuts up to 36″ lengths
CRD174 cuts up to 48″ lengths
CRD175 cuts up to 60″ lengths

Please contact us for pricing and availability (303) 438-0853 or Email our Sales Department

Technical Specifications

  • The CRD170 will cut most flexible tubing, non-metallic braided tubing and heat-shrink from sizes of 1/16″ (1.5mm) through 1/2″ (12.5mm).
  • Cuts 15°, 30°, 45°, 60°, 75°, and 90° angles.
  • A recommended durometer of Shore A 100, or less, will be cut very effectively without “burring”, tube deformation or excessive unit wear.
  • Easily interchangeable bushings; sizes range from 1/16” to 1/2”.
  • Minimum/maximum cut lengths range from 1-1/2″ to 24″.
  • Power supplies for both North America (120VAC) and Europe (230VAC) to be specified at the time of order.
  • Requires 100-120 PSI air supply
  • An optional stainless steel electronics cover is available.
  • 90 days parts and labor warranty; see user’s manual for warranty details.
