CRD171 Large Multi-Angle Tubing Cutter

Description

Cuts up to 24″ length | Cuts tubing sizes up to 1-3/4″ OD

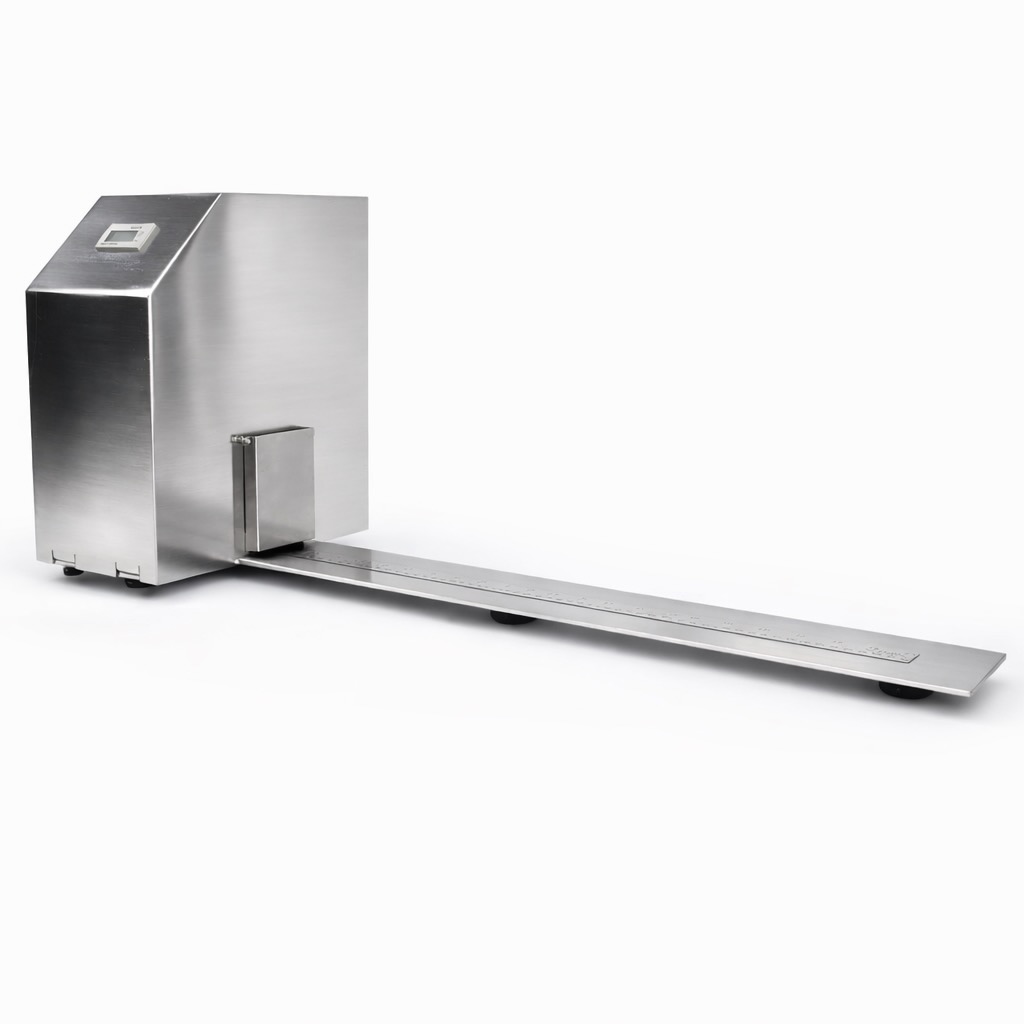

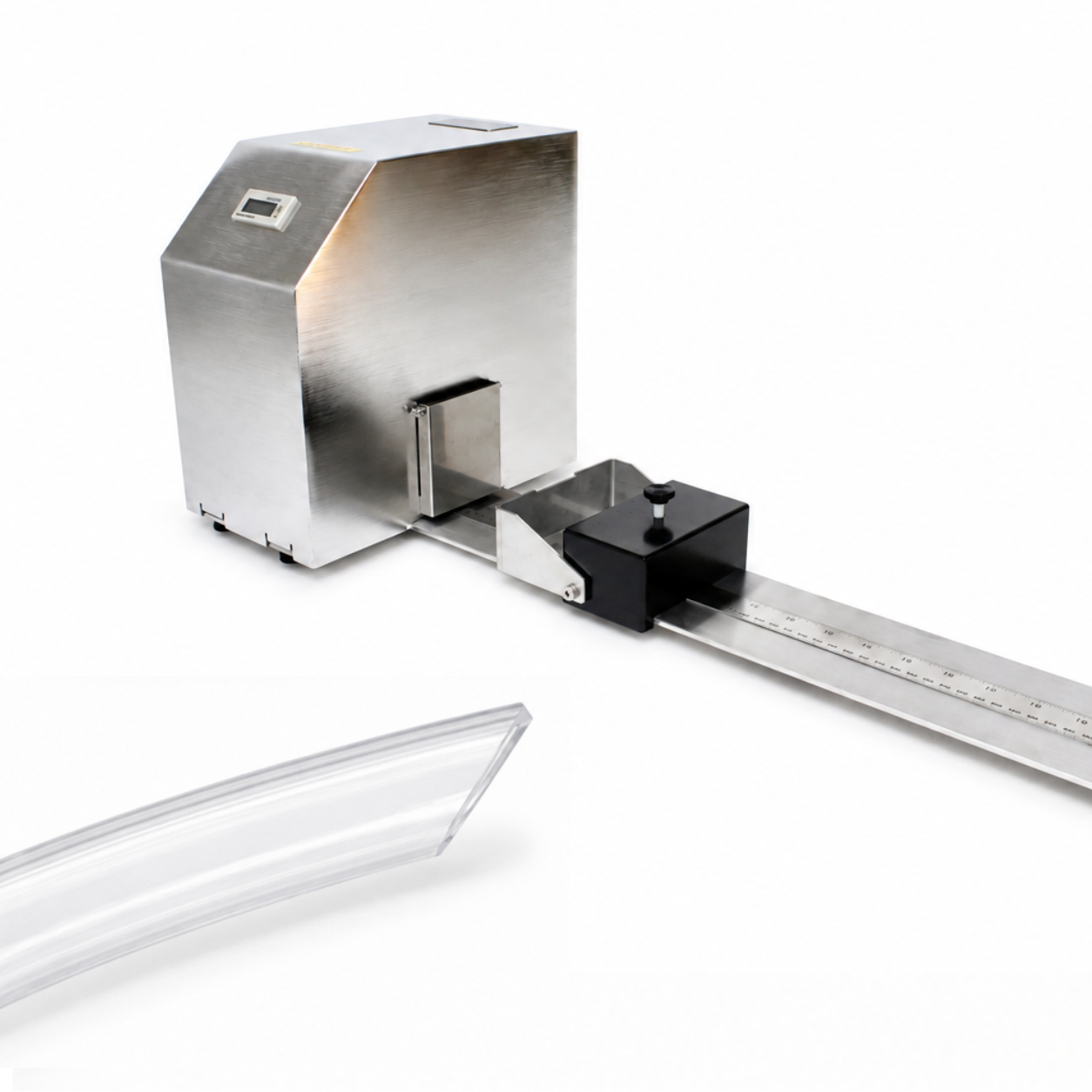

This semi-automatic, electro-pneumatic table-top device is designed for precision and speed in the production environment. This cutter is capable of cutting 45°, 60°, 75°, and 90° angles. The electric foot pedal makes this plastic tubing cutter ergonomically friendly and easy to operate. The cutter comes with an accurate stainless steel ruler and may be ordered with an optional certified ruler (24″, 36″, and 48″ lengths only).

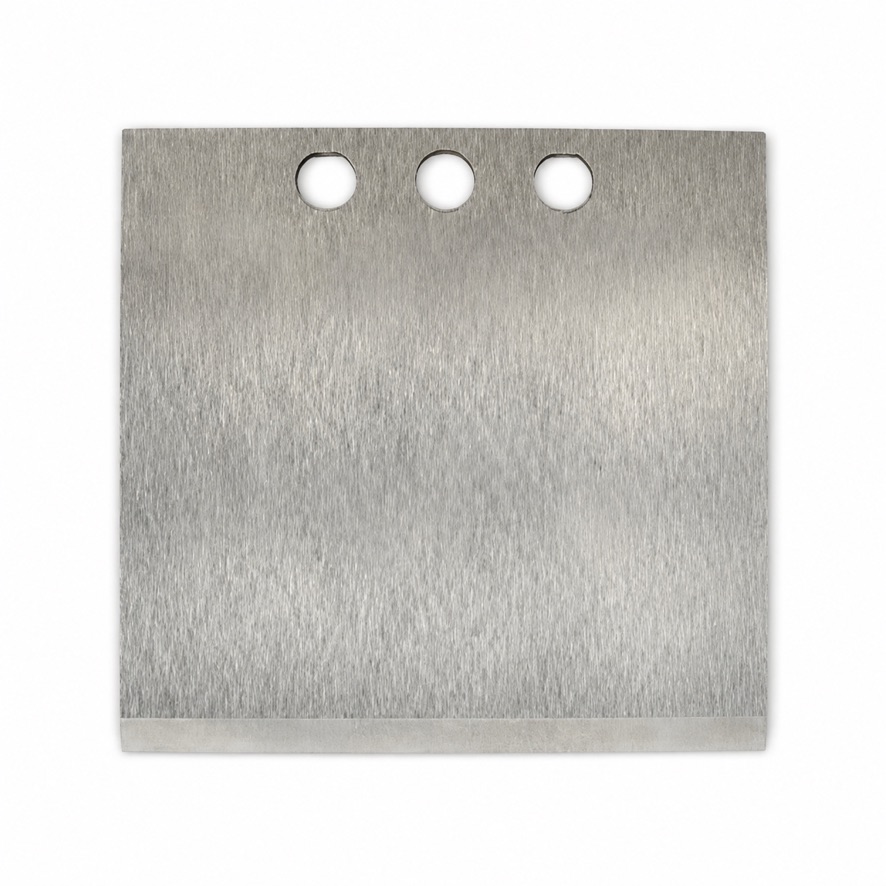

• Medical tube cutter: Our tube cutters are well suited for medical tube cutting applications.  They feature clean room compatible construction, are able to hold close tolerances on cut lengths and have both metric and imperial scales mounted to their bases.  These cutters employ stainless steel blades to cut medical tubing without contamination.
• Flexible tube cutter: Our tube cutters are capable of cutting many types of flexible tubing.  This includes pre-cut straight tubing as well as tubing off of a spool.
• Plastic tube cutter: Our tube cutters will cut many types of plastic tubing including PVC, urethane and many types of thermoplastics.

This cutter is available in 4 lengths:

• 24″(optional certified ruler)
• 36″(optional certified ruler)
• 48″(optional certified ruler)
• 60″

All models include a stainless steel base and matching stainless steel ruler.

Please contact us for pricing and availability (303) 438-0853 or Email our Sales Department

Technical Specifications

• The CRD171 will cut flexible tubing, non-metallic braided tubing and heat-shrink up to a recommended Shore A 100 durometer.
• Cuts 45°, 60°, 75°, and 90° angles.
• A recommended durometer of Shore A 100 or less.
• Easily interchangeable bushings; standard sizes range from 9/16″ to 1-3/4″ OD.
• Minimum/maximum measured cut lengths range from 3-1/16″ to 24″.
• Power supply is 120VAC/24VDC. International power supplies are available.
• Requires 100-120 PSI air supply.
• A stainless steel electronics cover is standard.
• 90 days parts and labor warranty; see user’s manual for warranty details.
