CRD180 Large Tubing Cutter

Call or email with questions.

Call or Email with Questions

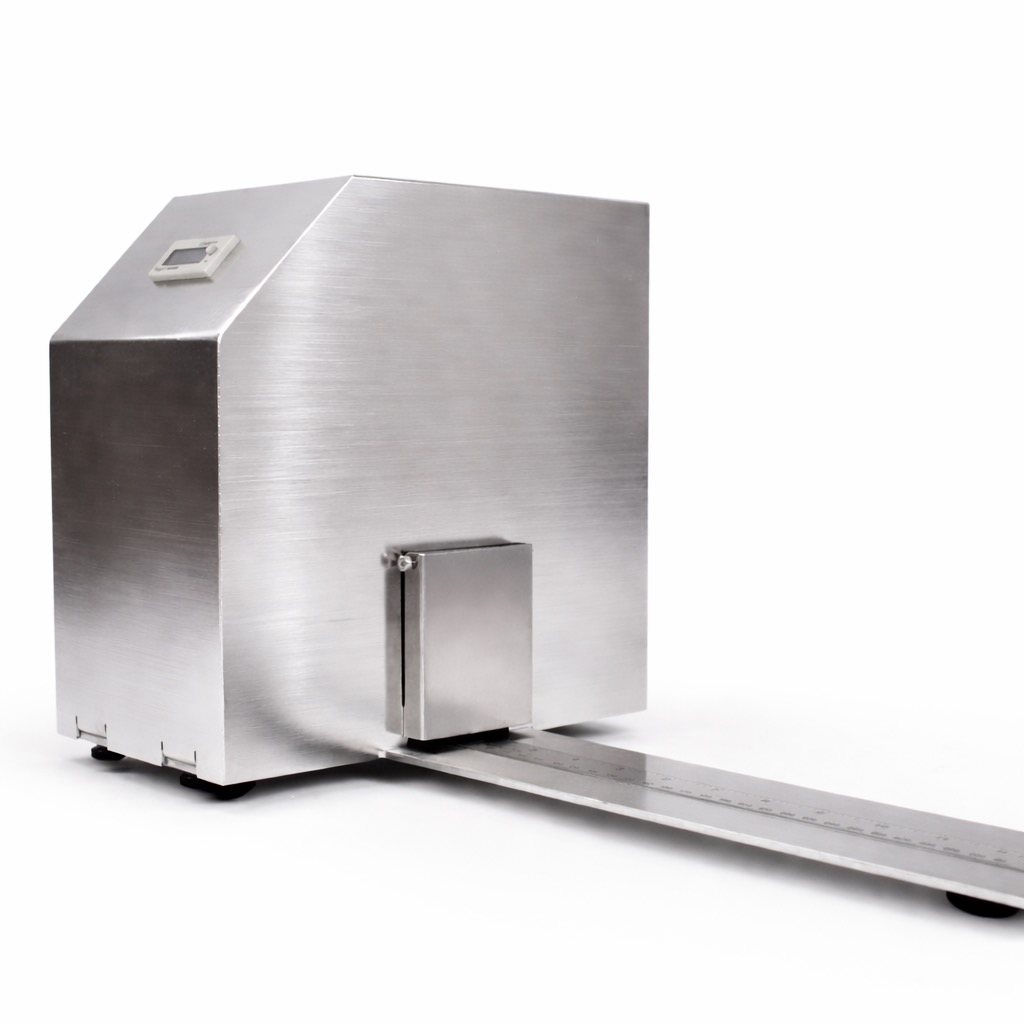

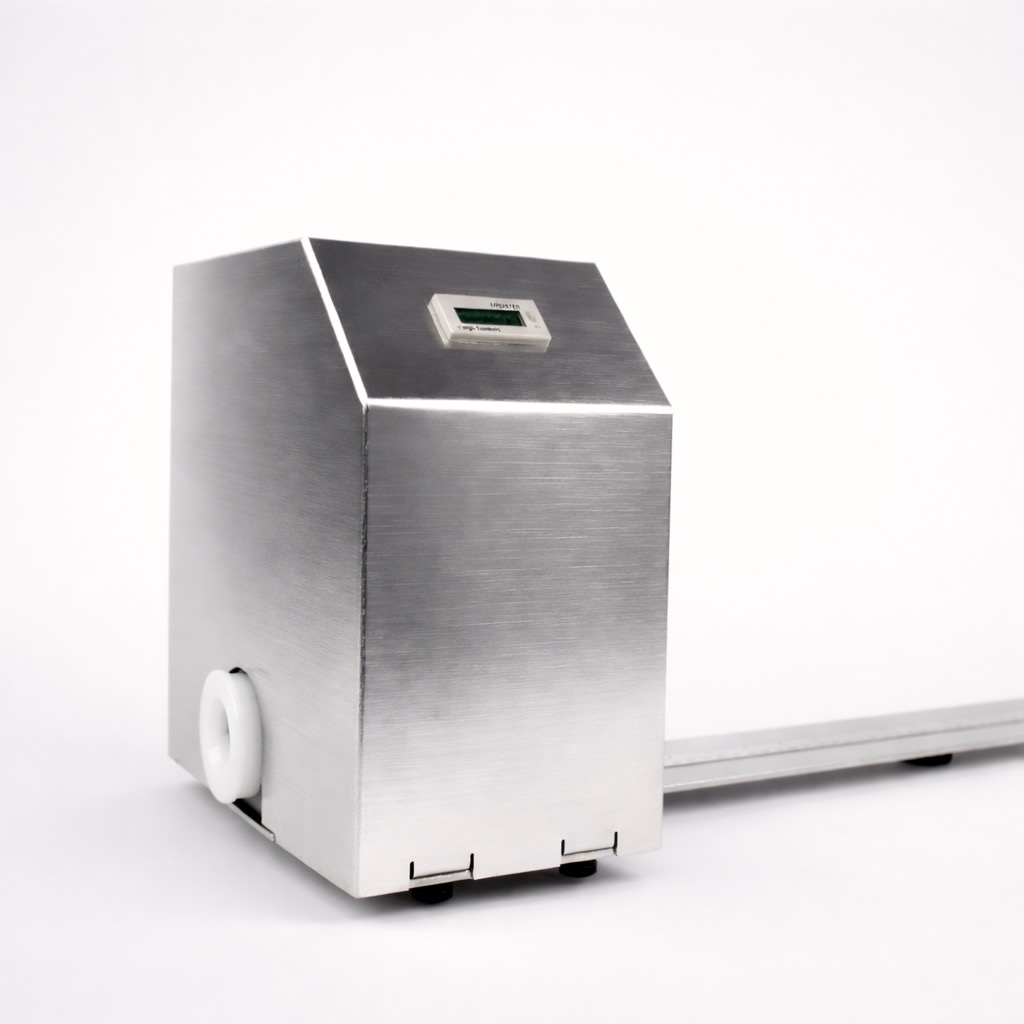

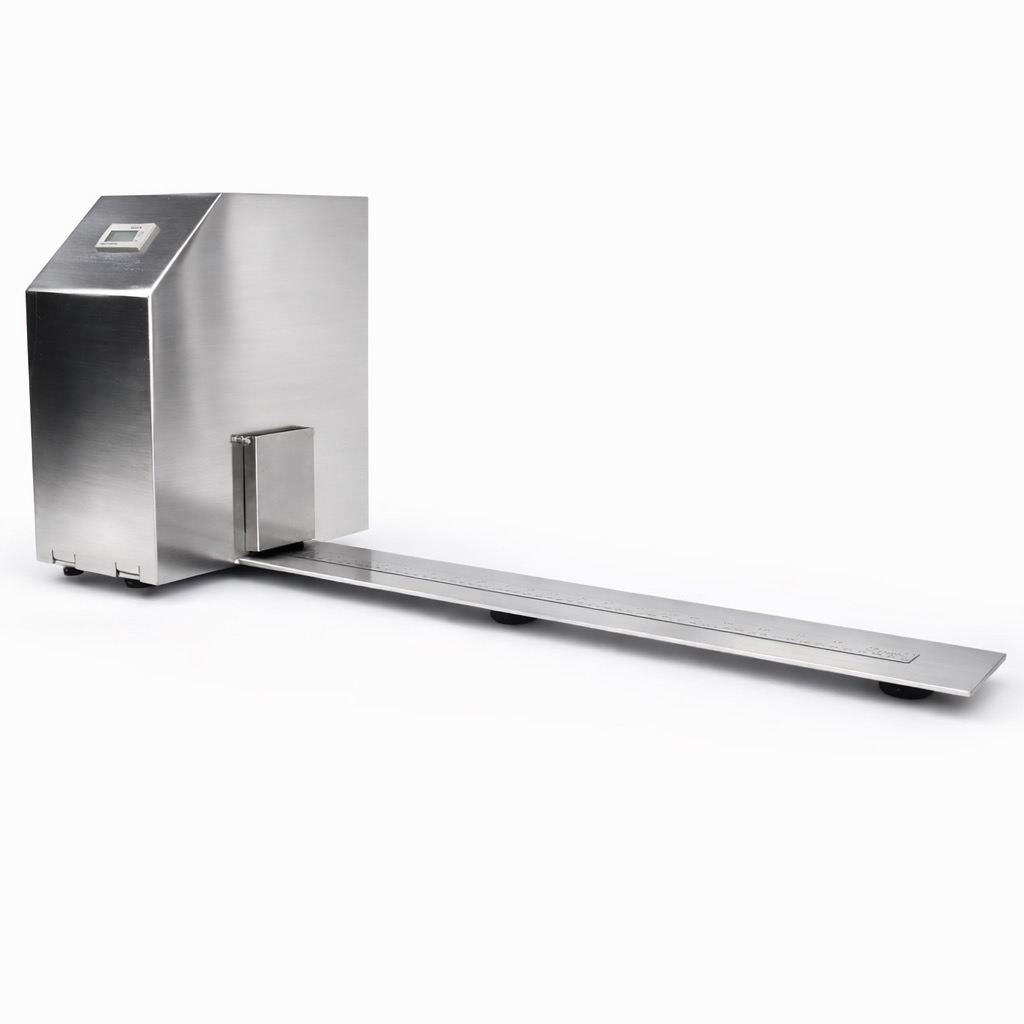

This fully stainless steel semi-automatic, electro-pneumatic table-top device is designed for precision and speed in the production environment.

Unwind Stand

P/N: CRD000-103
The Unwind Stand will hold spools of tubing or wire up to 12 inches in diameter. Anodized and powder-coated finish for compatibility in cleanroom environments.

Single Bushing Stand (Large Bushing)

P/N: BLS
Bushing stand. Holds five (5) large bushings.

Full Bushing Set (Large Bushings)

P/N: BS200
Five (5) bushing sizes and one (1) bushing stand.

null
Single Bushings
  • LB500: 1/2″(12.5mm)OD
  • LB562: 9/16″(14.5mm)OD
  • LB625: 5/8″(16mm)OD
  • LB750: 3/4″(3mm)OD
  • LB1.000: 1″(4mm)OD
  • LB1.125: 1-1/8″(5mm)OD
  • LB1.250: 1-1/4″(5.5mm)OD
  • LB1.375: 1-3/8″(6mm)OD
  • LB1.500: 1-1/2″(38mm)OD

View options »

Large Chevron Blades

P/N: CB200
Durable, Angled Cutting Blades, Hardened Stainless Steel. 0.040″ Thickness.

Large, Narrow Chevron Blades

P/N: CB220
Durable, Angled Cutting Blades, Hardened Stainless Steel. 0.020″ Thickness.

Slide Block with Rotating Stop Arm

P/N: CD185-027
Rotating stop arm allows for accurate cutting of 1.625″ to 3″ lengths.

Electric Foot Switch

P/N: P00159
Cast housing. Nonskid base pad. Complete with adjustable strain relief connector. Black finish.An internal strain relief clamp is provided that accepts a wide range of cable sizes.

Single Bushing Stand (Large Bushing)

P/N: P00600
Foot pedal enclosure to prevent accidental activation.

Large Adjustable Stop Pin

P/N: LASP
Adjustable stop pin, used for all cut lengths shorter than 1.625″.

Power Supply

P/N: NAPS24
Class 2 AC to DC Transformer, 2.1mm ID x 5.5mm OD, input= 120VAC-230VAC 60 Hz 20W, output= 24VDC 1000mA, 6′ cord, 2 prong plug, UL Listed.

European Power Supply

P/N: EUPS24
Class 2 AC to DC Transformer, 2.1mm ID x 5.5mm OD, input= 90 VAC ~ 264 VAC 30W, output= 24VDC 1250mA, 5’ cord, 5 plug types.

SKU: N/A Category: Tag:

Description

This fully stainless steel semi-automatic, electro-pneumatic table-top device is designed for precision and speed in the production environment. The electric foot pedal makes this flexible tubing cutter ergonomically friendly and easy to operate. This precision-crafted industrial and cleanroom product has several thousand hours of proven operational effectiveness. The cutter comes with an accurate scale with inch and millimeter graduations and may be ordered with an optional certified scale (Optional for CRD180. CRD183 and CRD184 feature a certified scale).

  • Medical tube cutter: Our tube cutters are well suited for medical tube cutting applications. These models feature clean room compatible construction and are equipped with stainless steel cutting blades to cut medical tubing without contamination.
  • Flexible tube cutter: Our tube cutters are capable of cutting many types of flexible tubing, whether pre-cut straight tubing, or tubing from a spool.
  • Plastic tube cutter: Our tube cutters will cut many types of plastic tubing including PVC, urethane and many types of thermoplastics.

An optional wireless remote control is available for the CRD185 and CRD188.

This cutter is available in 4 additional lengths:

  • CRD183 cuts up to 36″ lengths
  • CRD184 cuts up to 48″ lengths
  • CRD185 cuts up to 60″ lengths
  • CRD188 cuts up to 96″ lengths

Technical Specifications

  • The CRD180 will cut most flexible tubing, non-metallic braided tubing and heat-shrink from sizes of 1/2″ (12.5mm) through 1-1/2″ (38 mm).
  • A recommended durometer of Shore A 100, or less, will be cut very effectively without “burring”, tube deformation or excessive unit wear.
  • Easily interchangeable bushings; sizes range from 1/2” to 1-1/2” (Custom sizes available).
  • Minimum/maximum cut lengths range from 1-5/8″ to 24″.
  • Power supplies for both North America (120VAC) and Europe (230VAC) to be specified at the time of order.
  • Requires 100-120 PSI air supply.
  • 90 days parts and labor warranty; see user’s manual for warranty details.

Additional information

Model

CRD180, CRD182 (16')
