CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor

MWcms on February 22, 2024

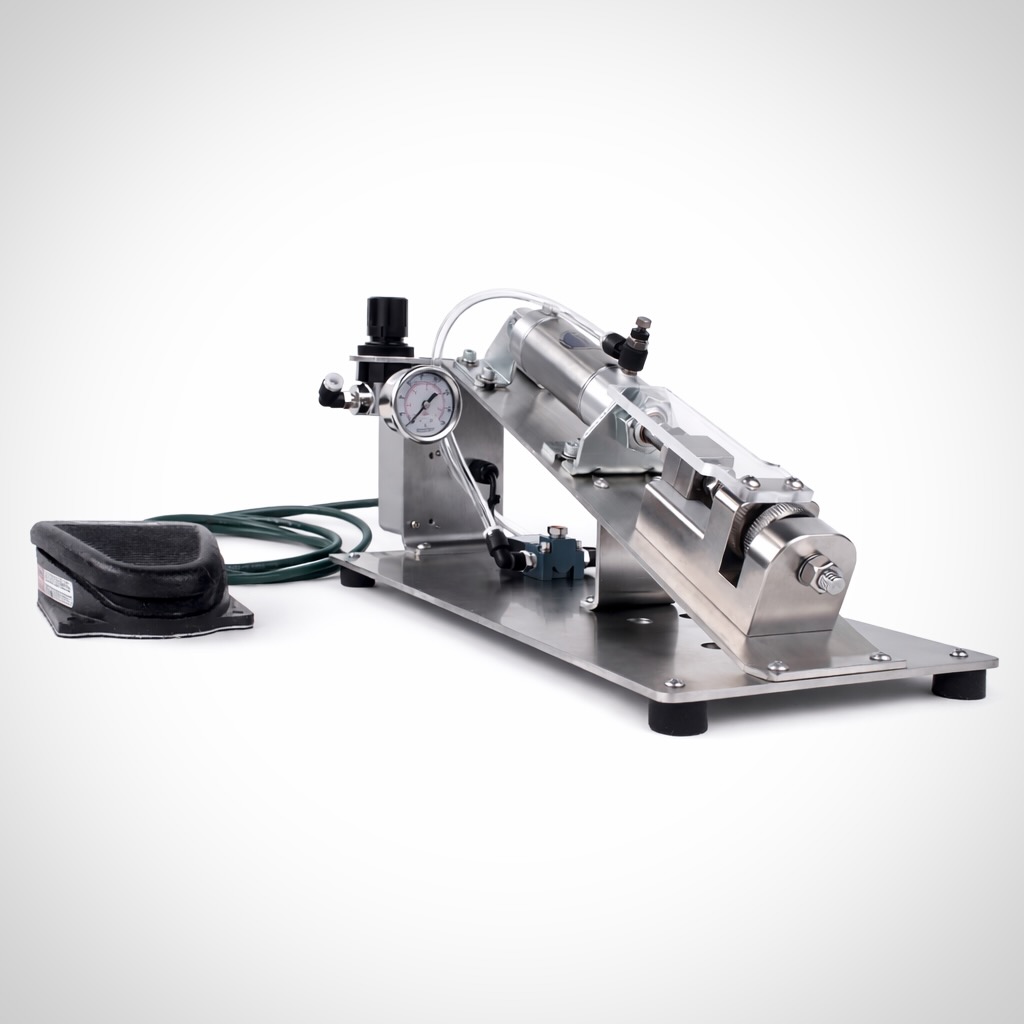

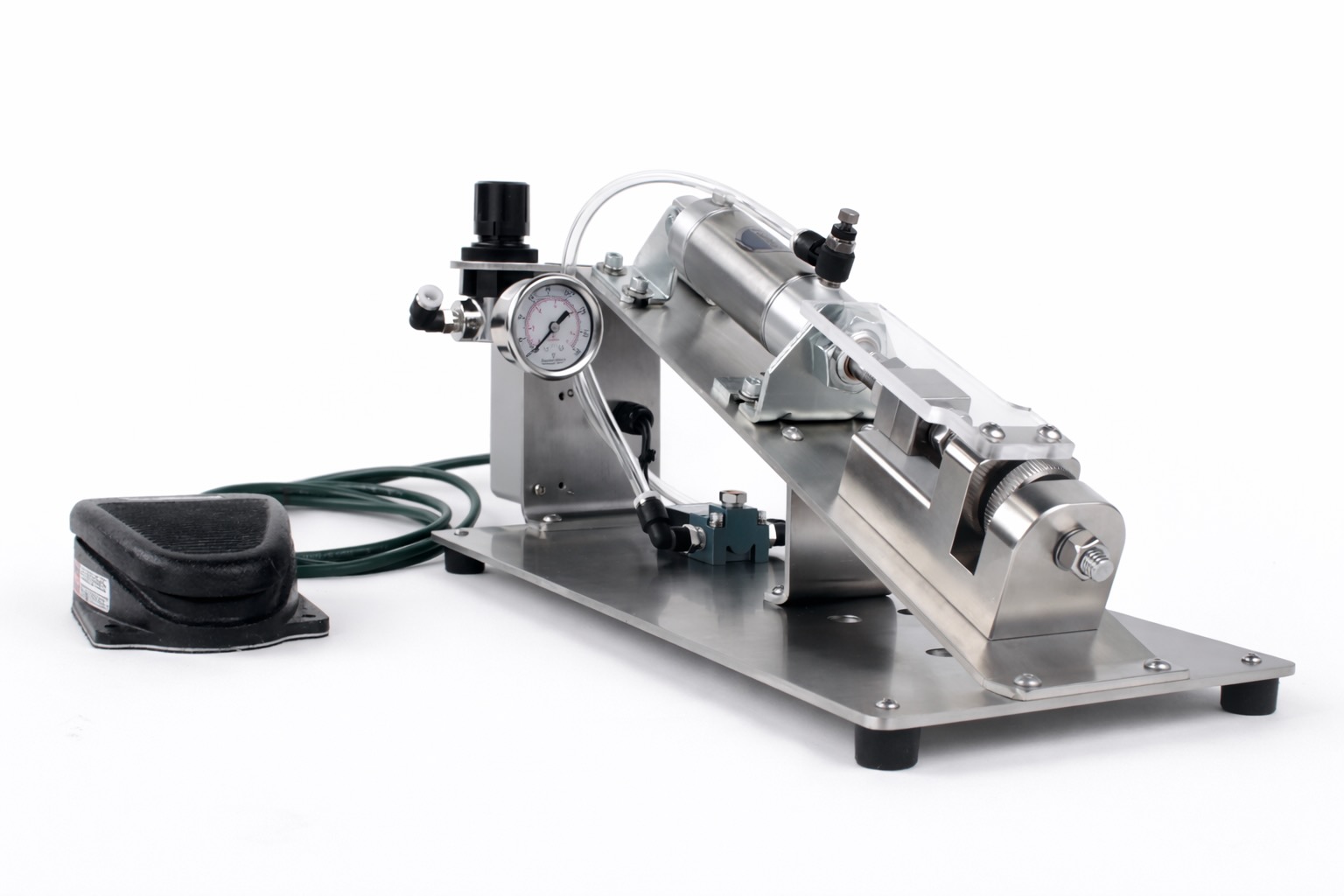

CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor

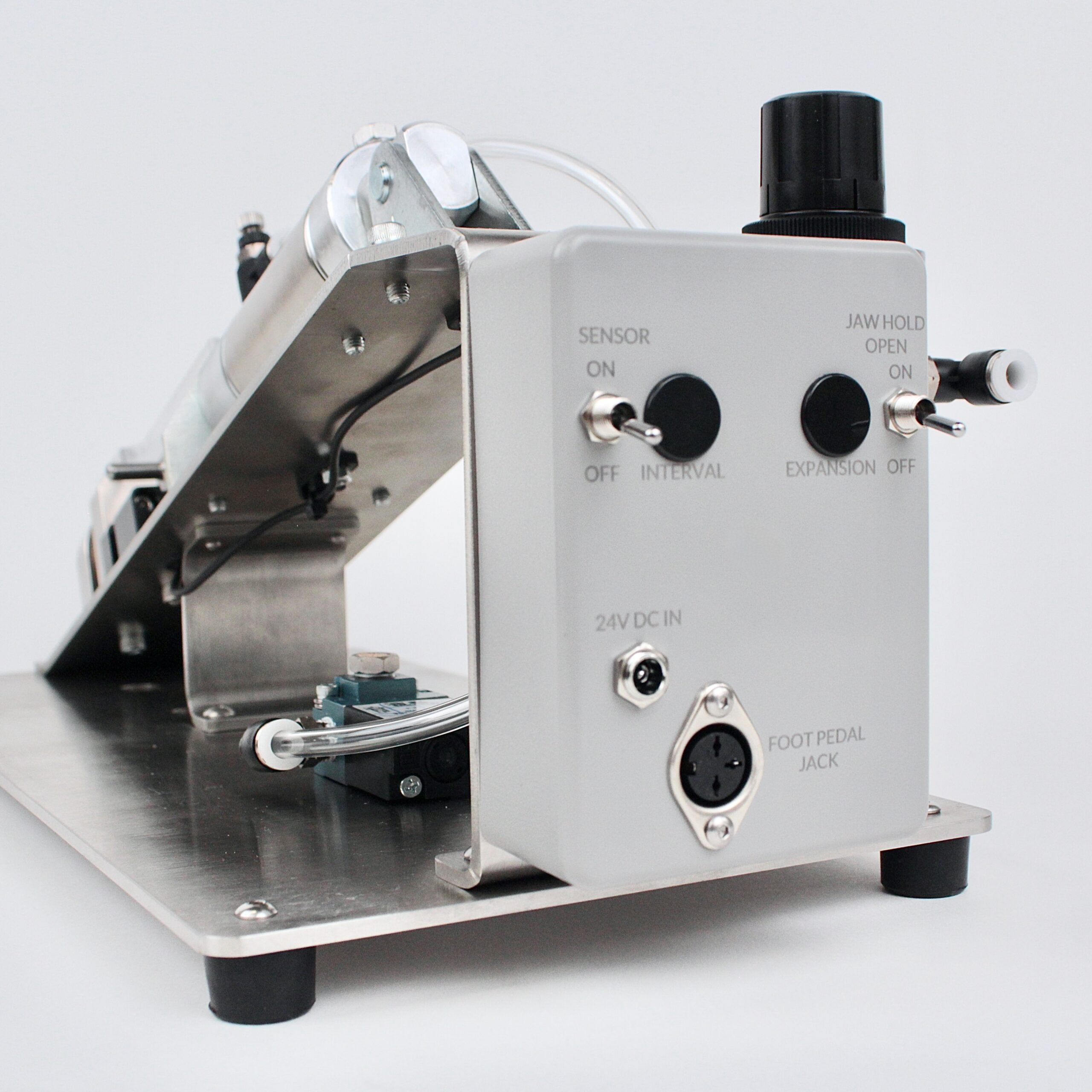

CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor - Image 2

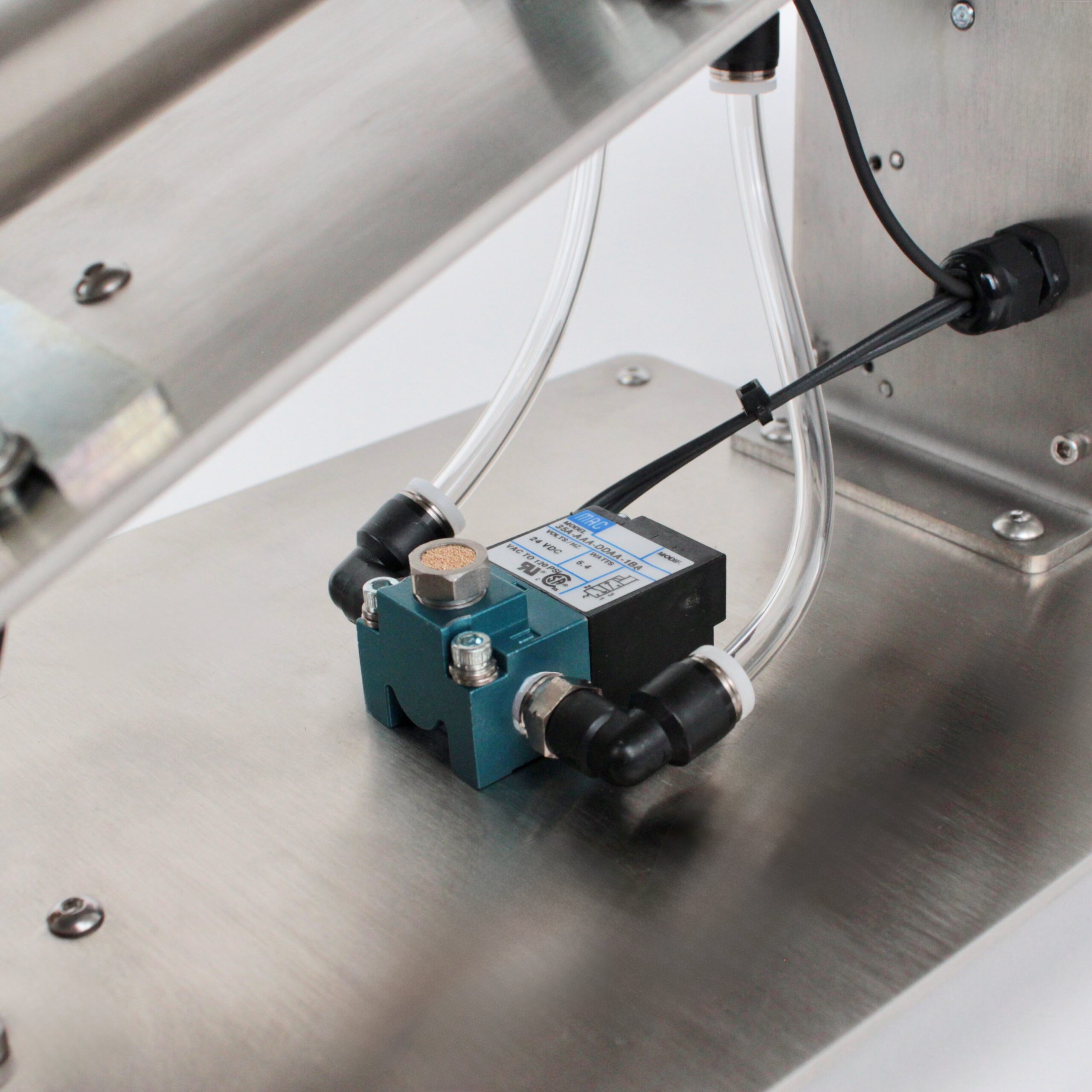

CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor - Image 3
CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor - Image 4

Call or email with questions.

Call or Email with Questions

The CRD201 time delay tubing expander performs a controlled internal expanding operation in the end of most flexible tubing. The time delay circuit allows for repeatable expansions.

Download

CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor tubing expander
Universal Expander Jaws

P/N: JUNIL-(Lg), JUNIS-(Sm), JUNIXS (Xs), JUNIM-(Mini)
Quality machined, medical grade stainless steel jaws (upper & lower). The universal jaws cover a wide range of industry standard tubing sizes (O. D.). These jaw sets will cover most applications, although we do have custom uniform O. D. straight jaws available. The available sizes are: Large, Small, and Mini.
CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor tubing expander
Custom Straight Jaws

P/N: CSJS### (3 digit size)
Our custom straight jaws are made to fit the ID of the tubing closer than our tapered jaws. If you are expanding tubing such as C-FLEX or EVA, our straight jaws will give a more accurate expansion.
CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor tubing expander
Double Sided Jaws

Double Sided Jaws
P/N: CDSJ### (3 digit size)
Quality machined, medical grade stainless steel jaws (upper & lower). The universal jaws cover a wide range of industry standard tubing sizes (I. D.). These jaw sets will cover most applications, although we do have custom uniform I. D. straight jaws available.
CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor tubing expander
Electric Foot Switch

P/N: P00159
The Electric Foot Switch features a cast housing, nonskid foot pads, and an enamel finish. Complete with adjustable strain relief connector. An internal strain relief clamp is provided that accepts a wide range of cable sizes.
CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor tubing expander
Foot Pedal with Integrated Guard

P/N: P00159G

Our Electric Foot Switch with the same standard features, also including a one-piece, integrated guard to prevent accidental activation.
CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor tubing expander
Power Supply

P/N: NAPS24
Class 2 AC to DC Transformer, 2.1mm ID x 5.5mm OD, input= 120VAC-230VAC 60 Hz 20W, output= 24VDC 1000mA, 6′ cord, 2 prong plug, UL Listed.
CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor tubing expander
European Power Supply

P/N: EUPS24
Class 2 AC to DC Transformer, 2.1mm ID x 5.5mm OD, input= 90 VAC ~ 264 VAC 30W, output= 24VDC 1250mA, 5’ cord, 5 plug types.
SKU: N/A Category:

Description

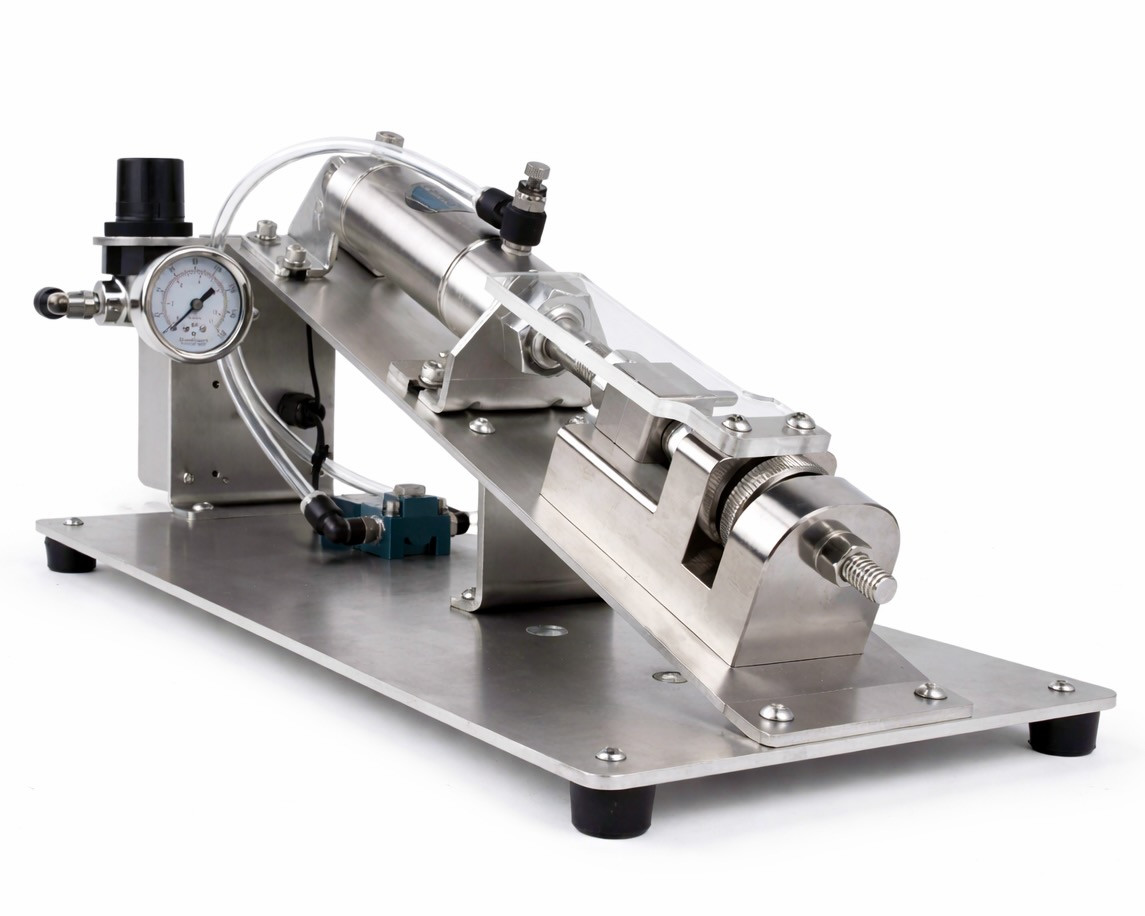

The CRD201/202 Time Delay Tubing Expanders are validated expansion systems engineered for precision, repeatability, and clean room compatibility. Both systems perform controlled internal expansion at the end of flexible tubing to allow secure fitting insertion — while eliminating operator variability through adjustable time delay control.

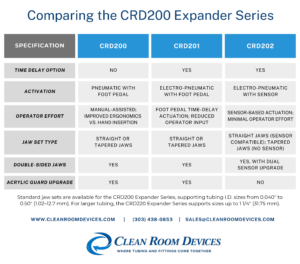

The difference comes down to operator activation method and ergonomics.

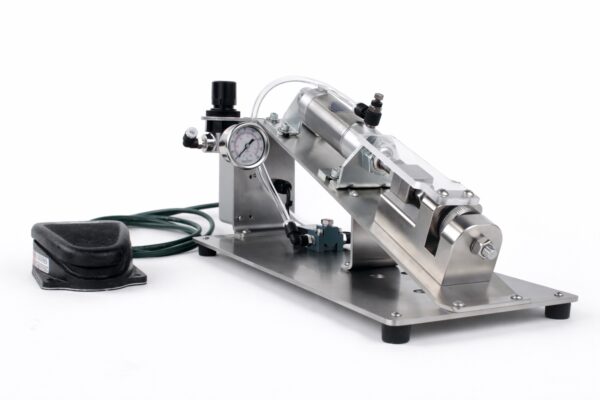

CRD201 – Foot Pedal Only

Choose the CRD201 if:

  • You prefer dedicated foot pedal control
  • Foot pedal activation fits your workflow
  • You require expansion capability down to .040″ I.D
Expands most flexible tubing (including non-metallic braided tubing) from .040″ to 1/2″ I.D.

CRD202 – Sensor or Foot Pedal(Interchangeable)

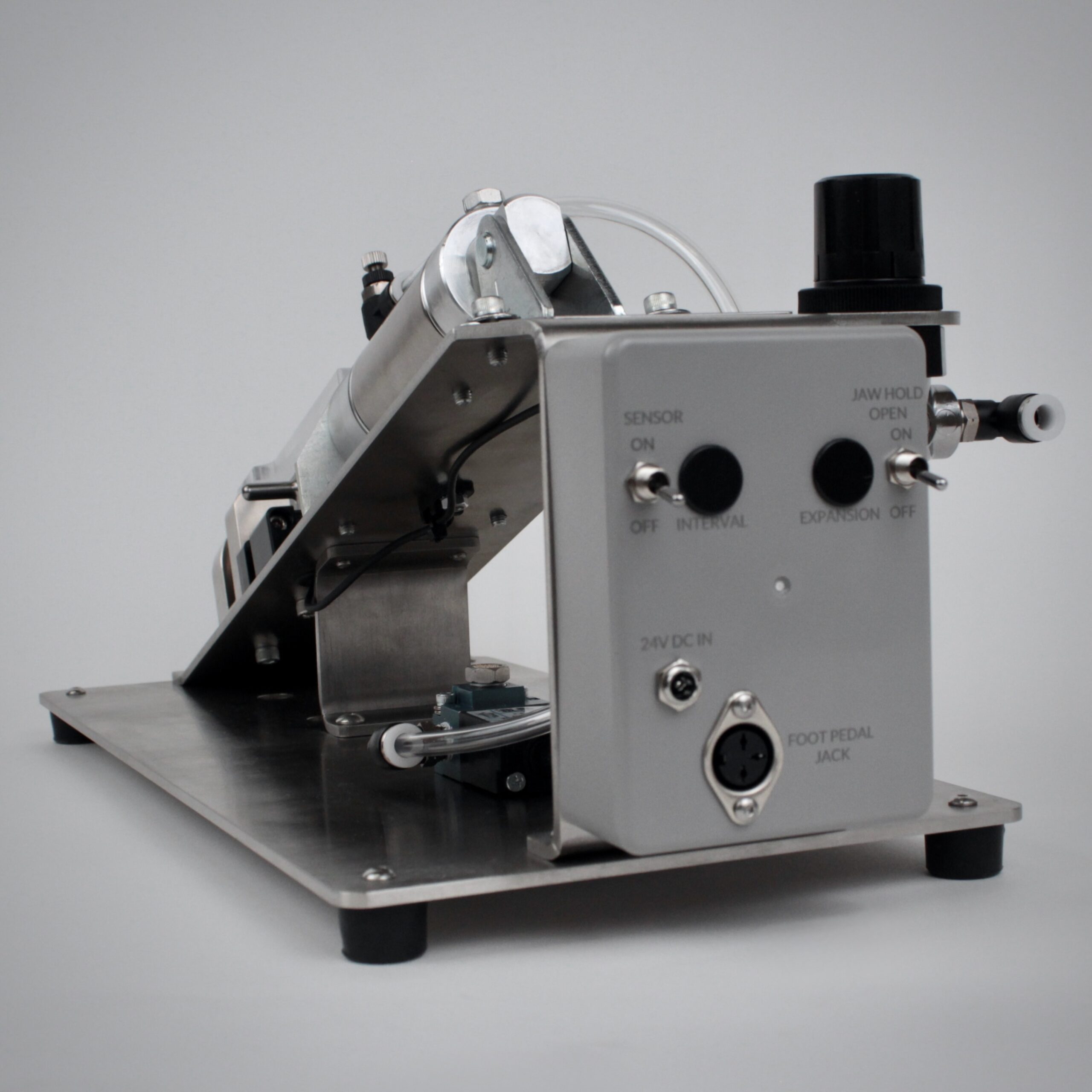

The CRD202 offers flexible activation modes. Operators can use infrared sensor activation for hands-free operation or switch to foot pedal control as needed.

Choose the CRD202 if:

  • You want hands-free operation
  • Ergonomics and operator strain reduction are priorities
  • You want a more versatile operator interface
  • You want the flexibility to switch between sensor and pedal
Expands most flexible tubing (including non-metallic braided tubing) from 3/32″ to 1/2″ I.D.

Shared Features Across Both Models

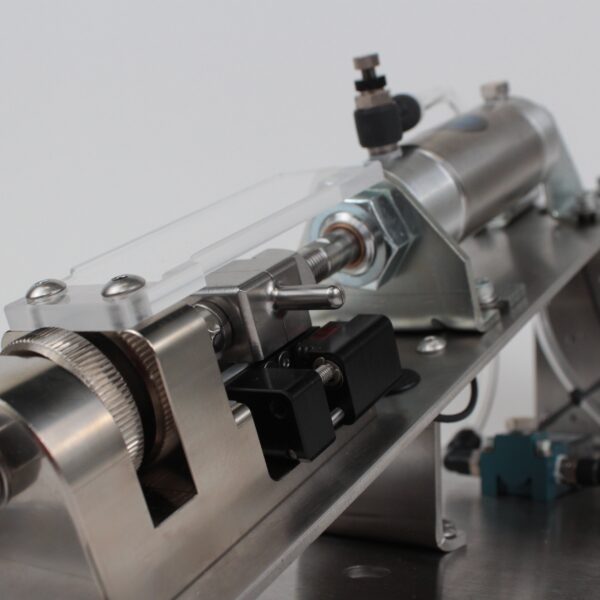

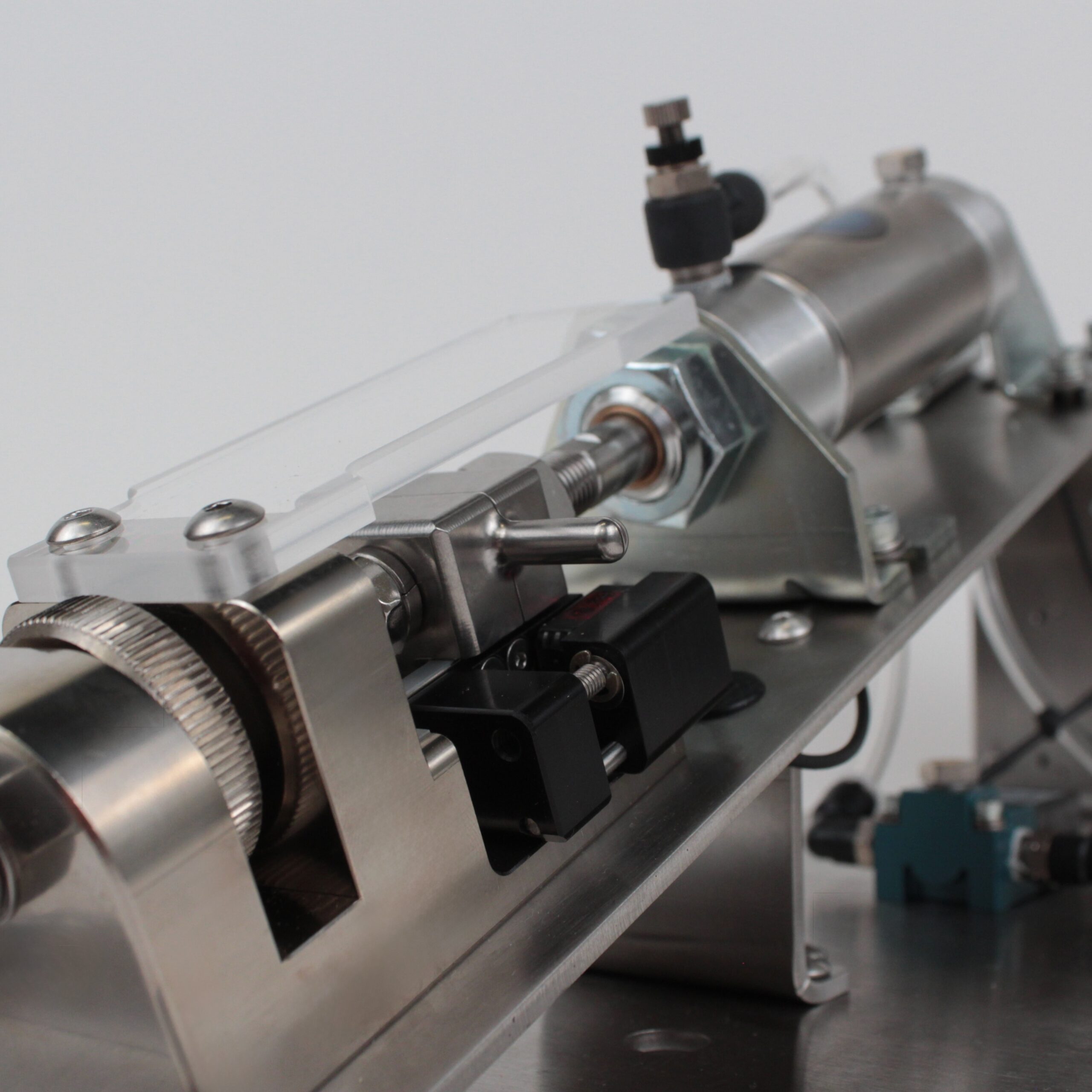

Both time delay tubing expander models perform a controlled internal expanding operation in the end of most flexible tubing. The foot pedal/sensor and robust air cylinder will perform an expanding operation, increasing the size of the tubing and allowing ease of inserting the fitting, as well as securing the fit as the specialty tubing recovers to its original size. With the special time delay option, manufacturing and process engineers can validate the repetitiveness of the tube expansion. This will eliminate variability between operators. These medical tubing expanders also feature stainless steel bases, as well as a “Hold Open” feature to make jaw spacing adjustments easier.

Medical tube expander: Our tube expanders are well-suited for medical tube expansion operations.  They feature clean room compatible construction and are able to expand medical tubing accurately, with highly repeatable results.  All of our tube expanders feature stainless steel jaws to prevent contamination during expansion.  Also, our expanders are extremely easy to validate.  They are equipped with pressure gauges, accurate jaw gap adjustment mechanisms, and time delay relays to set expansion time.  This makes tube expansion very repeatable.

Flexible tube expander:  Our tube expanders are capable of expanding many types of flexible tubing.  Our flexible tubing expanders can be used with either tapered or straight jaws, depending on the type of tubing to be expanded.

Plastic tube expander: Our tube expanders will expand many types of plastic tubing including PVC, urethane and many types of thermoplastics.

CE Certified: The CRD201/202 are now available as CE certified models.

Please contact us for pricing and availability (303) 438-0853 or Email our Sales Department

CRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor tubing expanderCRD201/202 Time Delay Tubing Expander with Foot Pedal/Sensor tubing expander

Technical Specifications

  • Ability to adjust the jaw open time from 0.5 to 5 seconds. Optional time delays are available for jaw open times up to 25 seconds, please call for details.
  • Includes a “Hold Open” feature which keep the jaws open, making it easier to make jaw spacing adjustments.
  • Dependable air pressure regulator/gauge and lock nut provide simple adjustments.
  • Power supplies for both North America (120VAC) and Europe (230VAC) to be specified at the time of order.
  • Stainless steel construction.
  • Specify jaw type and size when ordering.
  • 90 days parts and labor warranty; see user’s manual for warranty details.

Please contact us for pricing and availability (303) 438-0853 or Email our Sales Department

Additional information

Model

CRD201 (Foot Pedal), CRD202 (Sensor)
